H16113DF Datasheet - MAGTEK

H16113DF 10/100 BASE-T TRANSFORMER MODULES

M-TEK http://www.mag-tek.com.tw 10/100 BASE-T TRANSFORMER MODULES CF ompliant With IEEE 802.3 standards including Baseline Wander Compensation specification of 350uH OCL when biased at 8mA from O°C to 70°C SF ingle Channel Interface For 10/100Mbps Ethernet Applications with CMC’s tuned to enhance EMC system performance. F For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C (Operating Temperature 0°C to 70°C) Insertion Loss Return Loss CMRR Part (dB max) (dB min) (dB min) Numb.

H16113DF Datasheet (187.48 KB)

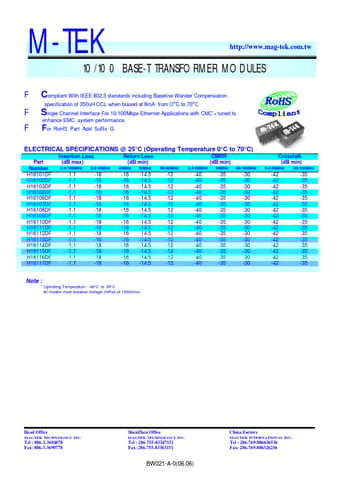

Preview of H16113DF PDF

Datasheet Details

Part number:

H16113DF

Manufacturer:

MAGTEK

File Size:

187.48 KB

Description:

10/100 base-t transformer modules.
