H16123DF 10/100 BASE-T TRANSFORMER MODULES

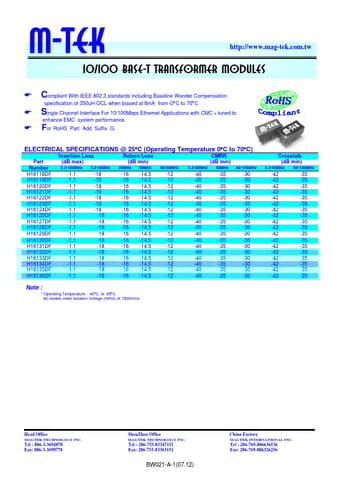

M-TEK http://www.mag-tek.com.tw 10/100 BASE-T TRANSFORMER MODULES ) Compliant With IEEE 802.3 standards including Baseline Wander Compensation specification of 350uH OCL when biased at 8mA from O°C to 70°C ) Single Channel Interface For 10/100Mbps Ethernet Applications with CMC’s tuned to enhance EMC system performance. ) For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C (Operating Temperature 0°C to 70°C) Insertion Loss Return Loss CMRR Part (dB max) (dB min) (dB min) Numb.

H16118DF-MAGTEK.pdf

This datasheet PDF includes multiple part numbers: H16123DF, H16118DF. Please refer to the document for exact specifications by model.
