H16125MC Datasheet - MAGTEK

H16125MC 10/100 BASE-T TRANSFORMER MODULES

M-TEK http://www.mag-tek.com.tw 10/100 BASE-T TRANSFORMER MODULES ) Compliant With IEEE 802.3 standards including Baseline Wander Compensation specification of 350uH OCL when biased at 8mA from O°C to 70°C ) Low Profile Surface Mount Packaging Designed For Hi-Temp Reflow Process (250 °C peak) ) For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C (Operating Temperature 0°C to 70°C) Insertion Loss Return Loss CMRR Part (dB max) (dB min) (dB min) Number 0.3-100MHz 0.3-30MHz 40MHz .

H16125MC-MAGTEK.pdf

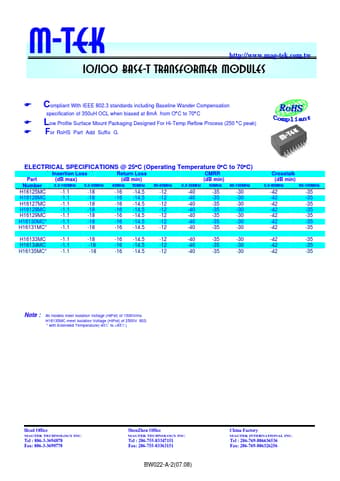

Preview of H16125MC PDF
H16125MC Datasheet Preview Page 2 H16125MC Datasheet Preview Page 3

Datasheet Details

Part number:

H16125MC

Manufacturer:

MAGTEK

File Size:

166.84 KB

Description:

10/100 base-t transformer modules.
