NL2021T

Thermoelectric Module

NL2021T Features

* RoHS EU Compliant

* Rated operating temperature of 85°C

* Maximum processing temperature of 120°C

* AC Suffix indicates Aluminum oxide ceramics.

* BC Suffix indicates Beryllium oxide ceramics. ORDERING OPTIONS Model Number NL2021T-01AC NL2021T-01BC NL2021T

NL2021T General Description

Both Surfaces are Metallized Both Surfaces are Metallized Hot Side Exterior is Metallized Hot Side Exterior is Metallized No Metallization No Metallization OPERATION CAUTIONS For maximum reliability, storage and operation below 85°C in a non-condensing environment is recommended. To minimize therma.

NL2021T Datasheet (1.46 MB)

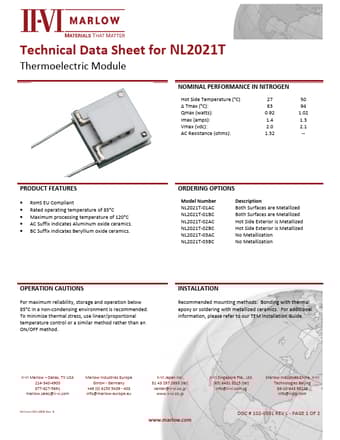

Preview of NL2021T PDF

Datasheet Details

Part number:

NL2021T

Manufacturer:

MARLOW

File Size:

1.46 MB

Description:

Thermoelectric module.
Technical Data Sheet for NL2021T Thermoelectric Module NOMINAL PERFORMANCE IN NITROGEN Hot Side Temperature (°C) 27 50 Δ Tmax (°C): 83 94 Qmax .
