MX74610 - Reverse Polarity Protection Smart Diode Controller

Datasheet Summary

Description

The MX74610 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry.

It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source.

Features

  • Maximum reverse voltage of 65V.
  • No Positive Voltage limitation to ANODE Terminal.
  • Charge Pump Gate Driver for External N-Channel MOSFET.
  • Lower Power Dissipation than Schottky Diode / PFET Solutions.
  • Low Reverse Leakage Current.
  • Fast 2µs Response to Reverse Polarity.
  • -40°C to +125°C Operating Ambient Temperature.
  • Can be Used in OR-ing.

📥 Download Datasheet

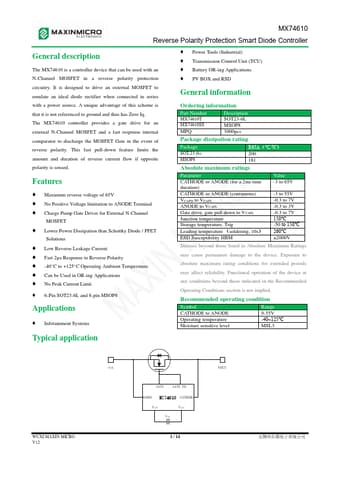

Datasheet preview – MX74610

Datasheet Details

Part number MX74610
Manufacturer MAXINMICRO
File Size 1.34 MB
Description Reverse Polarity Protection Smart Diode Controller
Datasheet download datasheet MX74610 Datasheet
Additional preview pages of the MX74610 datasheet.

📁 Similar Datasheet

  • MX74VHC04 - HEX INVERTER (Motorola)
  • MX7224 - CMOS 8-Bit DAC (Maxim Integrated Products)
  • MX7225 - (MX7225 / MX7226) CMOS Quad 8-Bit D/A Converters (Maxim Integrated Products)
  • MX7226 - (MX7225 / MX7226) CMOS Quad 8-Bit D/A Converters (Maxim Integrated Products)
  • MX7226K - CMOS Quad 8-Bit D/A Converters (Maxim)
  • MX7228 - CMOS Octal 8-Bit D/A Converter (Maxim)
  • MX7245 - Complete / 12-Bit Voltage-Output DACs (Maxim)
  • MX7248 - Complete / 12-Bit Voltage-Output DACs (Maxim)
  • MX7501 - Low -Power / Monolithic / CMOS Analog Multiplexers (Maxim)
  • MX7501JN - Low -Power / Monolithic / CMOS Analog Multiplexers (Maxim)
Other Datasheets by MAXINMICRO
  • MX7219T - 4.5ns Rail-to-Rail High-Speed Comparator

Full PDF Text Transcription

Click to expand full text
MX74610 Reverse Polarity Protection Smart Diode Controller General description The MX74610 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry. It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source. A unique advantage of this scheme is that it is not referenced to ground and thus has Zero Iq. The MX74610 controller provides a gate drive for an external N-Channel MOSFET and a fast response internal comparator to discharge the MOSFET Gate in the event of reverse polarity. This fast pull-down feature limits the amount and duration of reverse current flow if opposite polarity is sensed.
