SB1060DC, SB1020DC 10A Dual Schottky Barrier Rectifier

SB1060DC Description

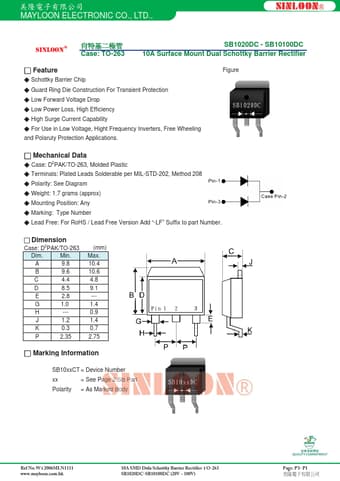

ऍໜႝηԖज़Ϧљ MAYLOON ELECTRONIC CO., LTD., SINLOON® ߕ௽ഗԲᄕጥ Case: TO-263 SB1020DC - SB10100DC 10A Surface Mount Dual Schottky Barrier Rectifier ϭ Featu.

SB1060DC Applications

* Figure ϭ Mechanical Data Ϭ Case: D2PAK/TO-263, Molded Plastic Ϭ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Ϭ Polarity: See Diagram Ϭ Weight: 1.7 grams (approx) Ϭ Mounting Position: Any Ϭ Marking: Type Number Ϭ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Nu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1060DC, SB1020DC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1060DC, SB1020DC
Manufacturer
MAYLOON
File Size
360.95 KB
Datasheet
SB1020DC-MAYLOON.pdf
Description
10A Dual Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SB1060DC, SB1020DC.
Please refer to the document for exact specifications by model.
