1N5385BE - 5 Watt Zener Diode

This page provides the datasheet information for the 1N5385BE, a member of the 1N5348BE 5 Watt Zener Diode family.

Datasheet Summary

Features

  • Built Strain Relief.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • For Available Tolerances.
  • See Note 1.
  • Marking : 1N5348~1N5388 part number and Cathode Band Maximum Ratings:.
  • Operating Temperature: -55°C to +150°C.
  • Storage Temperature: -55°C to +150°C.
  • 5 Watt DC Power Dissipation.
  • Maximum Forward Voltage @ 1A: 1.2 Volts.
  • Power Derating: 40 mW/℃ Above 75℃ Mechanical Characteris.

📥 Download Datasheet

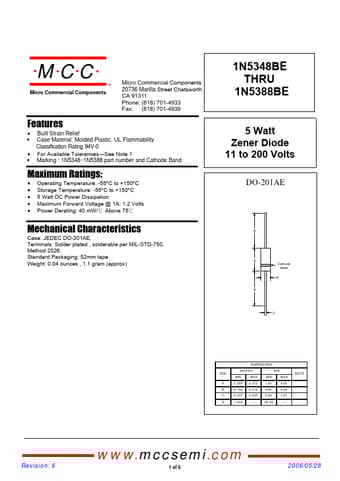

Datasheet preview – 1N5385BE
