1N5416GP - 1600V 3 Amp Glass Passivated Rectifier

Product Overview

MCC

📥 Download Datasheet

1N5416GP 1600V 3 Amp Glass Passivated Rectifier by MCC - Datasheet Preview — Datasheet preview – 1N5416GP

Datasheet Details

Part number	1N5416GP
Manufacturer	MCC
File Size	768.00 KB
Description	1600V 3 Amp Glass Passivated Rectifier
Datasheet	1N5416GP Datasheet

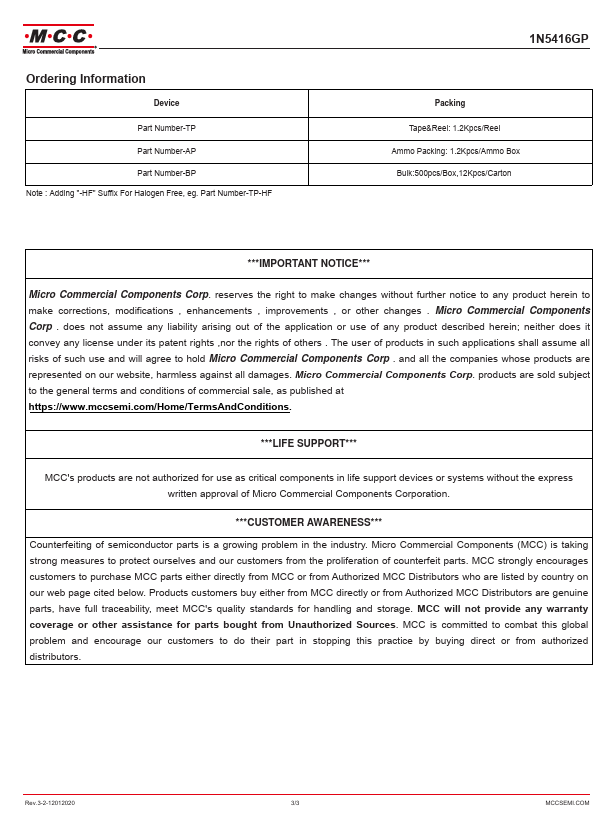

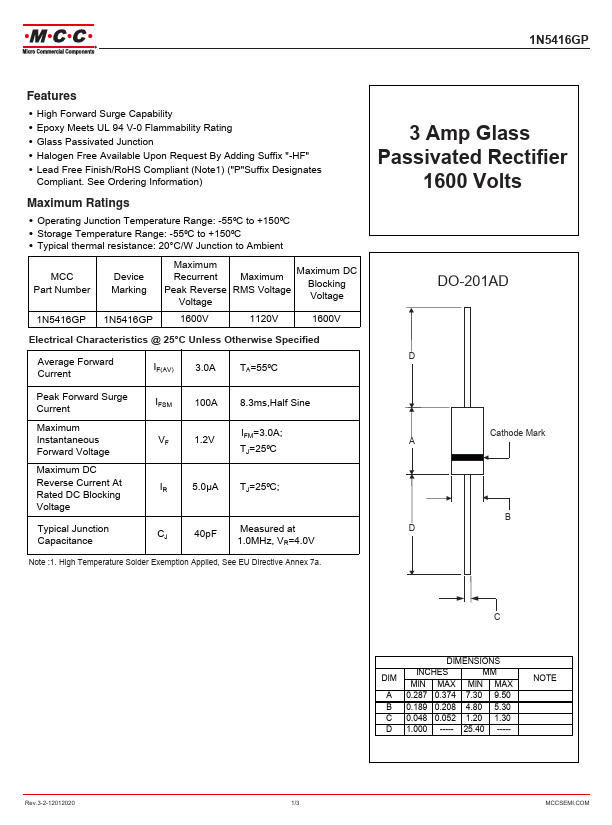

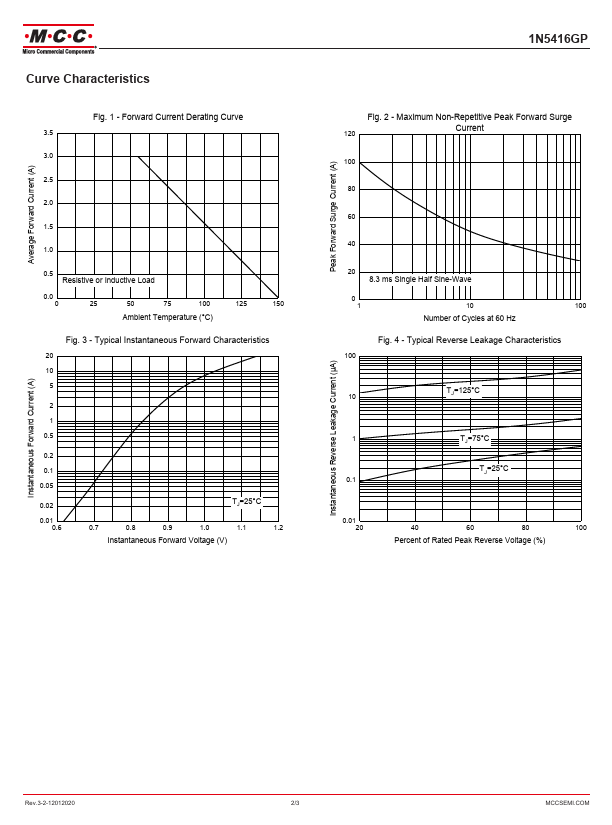

Additional preview pages of the 1N5416GP datasheet.

Product details

Features

High Forward Surge Capability.
Epoxy Meets UL 94 V-0 Flammability Rating.
Glass Passivated Junction.
Halogen Free Available Upon Request By Adding Suffix "-HF".
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) Maximum Ratings.
Operating Junction Temperature Range: -55⁰C to +150⁰C.
Storage Temperature Range: -55⁰C to +150⁰C.
Typical thermal resistance: 20°C/W Junction to Amb.
