1N5996, 1N5989 - 500mW Zener Diode

Name: 1N5996
SKU: 1N5996-1290615

MCC

The 1N5996 by MCC is a 500mW Zener Diode. Below is the official datasheet preview.

Datasheet Details

Part number	1N5996, 1N5989
Manufacturer	MCC
File Size	91.82 KB
Description	500mW Zener Diode
Datasheet	1N5989-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5996, 1N5989. Please refer to the document for exact specifications by model.

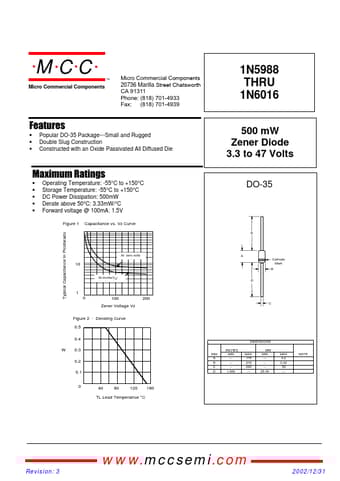

Additional preview pages of the 1N5996 datasheet.

Popular DO-35 Package---Small and Rugged.
Double Slug Construction.
Constructed with an Oxide Passivated All Diffused Die Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C.
DC Power Dissipation: 500mW.
Derate above 50°C: 3.33mW/°C.
Forward voltage @ 100mA: 1.5V Figure 1 Capacitance vs. Vz Curve 1N5988 THRU 1N6016 500 mW Zener Diode 3.3 to 47 Volts DO-35 D Typical Capacitance In.
