2SA1013-R - PNP Transistor

Product Overview

MCC

📥 Download Datasheet

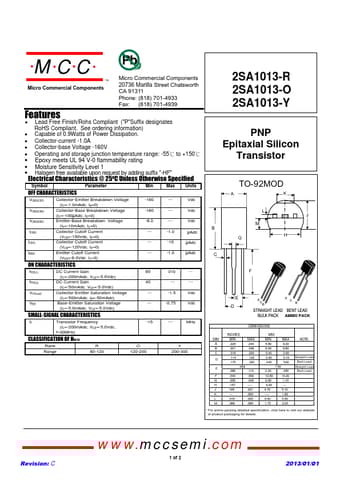

2SA1013-R PNP Transistor by MCC - Datasheet Preview — Datasheet preview – 2SA1013-R

Datasheet Details

Part number	2SA1013-R
Manufacturer	MCC
File Size	217.87 KB
Description	PNP Transistor
Datasheet	2SA1013-R Datasheet
Additional preview pages of the 2SA1013-R datasheet.

Product details

Features

Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information).
Capable of 0.9Watts of Power Dissipation.
Collector-current -1.0A.
Collector-base Voltage -160V.
Operating and storage junction temperature range: -55к to +150к.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Halogen free available upon request by adding suffix "-HF" Electrical Characteristics @ 25.
