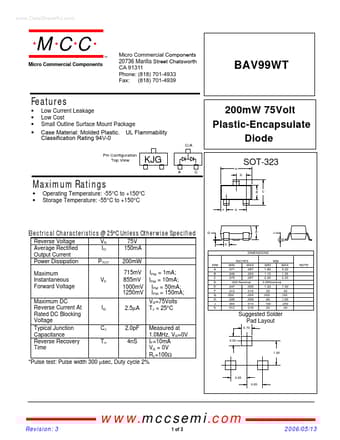

BAV99WT
Features
Low Current Leakage Low Cost Small Outline Surface Mount Package Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
C/A Pin Configuration Top View
200m W 75Volt Plastic-Encapsulate Diode
SOT-323
Maximum Ratings
- -
Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C
Electrical Characteristics @ 25°C Unless Otherwise Specified
Reverse Voltage Average Rectified Output Current Power Dissipation Maximum Instantaneous Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance Reverse Recovery Time VR IO PTOT VF 75V 150m A 200m W 715m V IFM = 1m A; 855m V IFM = 10m A; 1000m V IFM = 50m A; 1250m V IFM = 150m A; 2.5µA VR=75Volts TJ = 25°C
K DIMENSIONS INCHES MIN MAX .071 .087 .045 .053 .079 .087 .026 Nominal .047 .055 .012 .016 .000 .004 .035 .039 .004 .010 .012 .016 MM MIN MAX 1.80 2.20 1.15 1.35 2.00 2.20 0.65Nominal 1.20 1.40 .30 .40 .000 .100 .90 1.00 .100 .250 .30...
