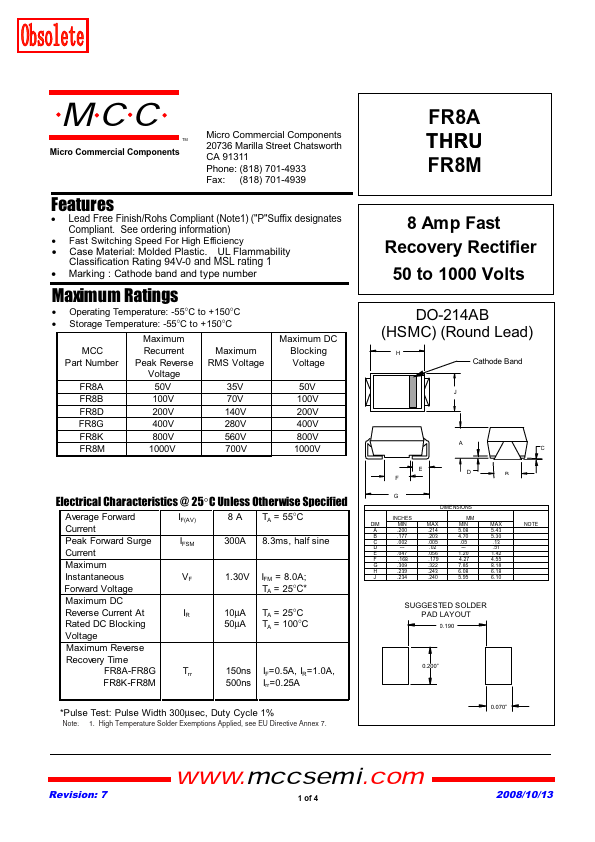

FR8A - 8 Amp Fast Recovery Rectifier

MCC

Datasheet Details

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Fast Switching Speed For High Efficiency x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1 x Marking : Cathode band and type number Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C MCC Part Number FR8A FR8B FR8D FR8G FR8K FR8M Maximum Recurrent Peak Reverse Voltage 50V.
