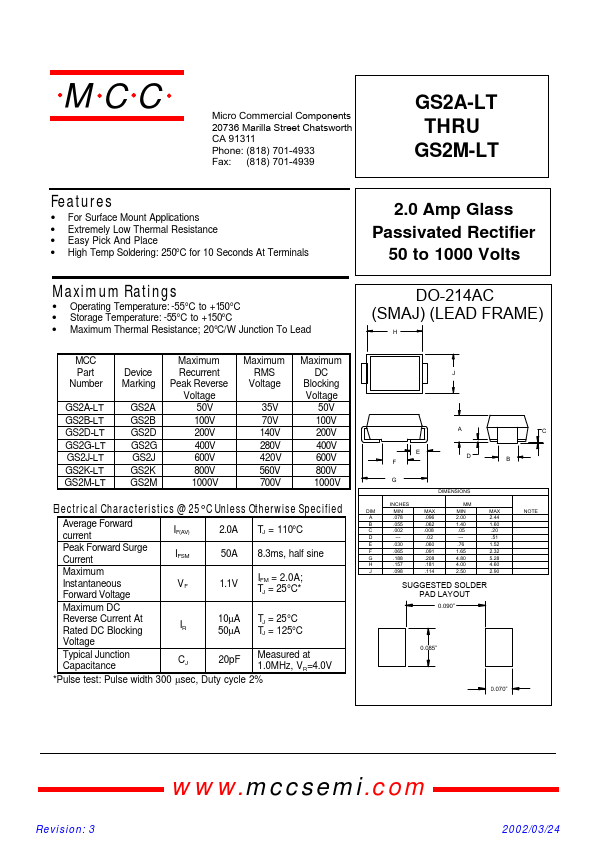

GS2D-LT
Features
- For Surface Mount Applications
- Extremely Low Thermal Resistance
- Easy Pick And Place
- High Temp Soldering: 250°C for 10 Seconds At Terminals
Maximum Ratings
- Operating Temperature: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
- Maximum Thermal Resistance; 20°C/W Junction To Lead
2.0 Amp Glass Passivated Rectifier
50 to 1000 Volts
DO-214AC (SMAJ) (LEAD FRAME)
MCC Part Number
GS2A-LT GS2B-LT GS2D-LT GS2G-LT GS2J-LT GS2K-LT GS2M-LT
Device Marking
GS2A GS2B GS2D GS2G GS2J GS2K GS2M
Maximum Recurrent Peak Reverse Voltage
50V 100V 200V 400V 600V 800V 1000V
Maximum RMS
Voltage
35V 70V 140V 280V 420V 560V 700V
Maximum DC
Blocking Voltage
50V 100V 200V 400V 600V 800V 1000V
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward current
IF(AV)
2.0A TJ = 110°C
Peak Forward Surge Current
IFSM
50A 8.3ms, half sine
Maximum Instantaneous Forward Voltage
1.1V
IFM = 2.0A; TJ = 25°C-
Maximum DC Reverse Current At Rated DC Blocking...
