GS2J

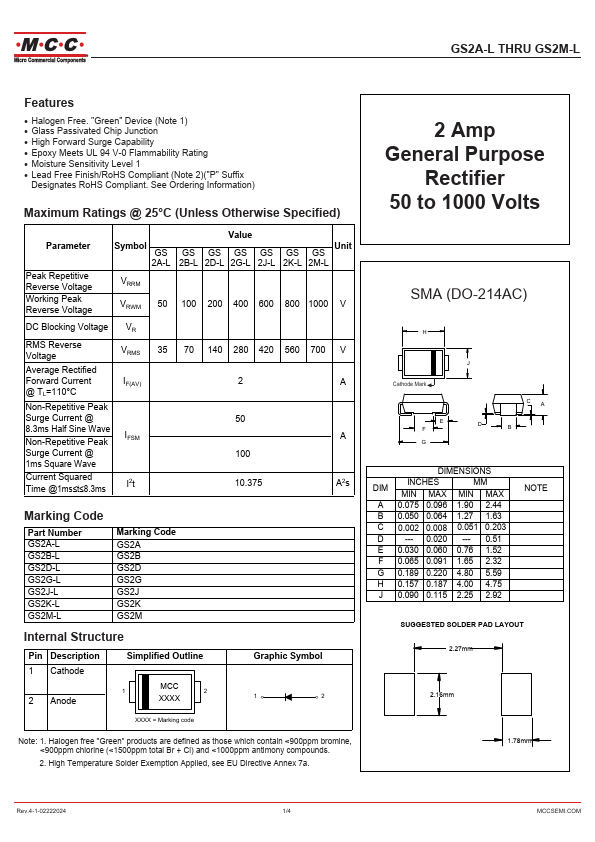

Features
- Halogen Free. "Green" Device (Note 1)
- Glass Passivated Chip Junction
- High Forward Surge Capability
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Lead Free Finish/Ro HS pliant (Note 2)("P" Suffix
Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C (Unless Otherwise Specified)
Parameter
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage
Symbol GS 2A-L
Value
GS GS GS GS 2B-L 2D-L 2G-L 2J-L
GS GS Unit 2K-L 2M-L
VRRM
VRWM 50 100 200 400 600 800 1000 V
DC Blocking Voltage VR
RMS Reverse Voltage
VRMS 35 70 140 280 420 560 700 V
Average Rectified
Forward Current
IF(AV)
@ TL=110°C
Non-Repetitive Peak
Surge Current @
8.3ms Half Sine Wave Non-Repetitive Peak
IFSM
Surge Current @
1ms Square Wave
50 A
Current Squared Time @1ms≤t≤8.3ms
I2t
A2s
Marking Code
Part Number GS2A-L GS2B-L GS2D-L GS2G-L GS2J-L GS2K-L GS2M-L
Marking Code GS2A GS2B GS2D GS2G GS2J GS2K...
