GS2K, GS2A-L - 2.0 Amp Glass Passivated Rectifier

MCC

GS2K Datasheet Preview — This datasheet PDF includes multiple part numbers: GS2K, GS2A-L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	GS2K, GS2A-L
Manufacturer	MCC
File Size	881.82 KB
Description	2.0 Amp Glass Passivated Rectifier
Datasheet	GS2A-L_MCC.pdf
Note	This datasheet PDF includes multiple part numbers: GS2K, GS2A-L. Please refer to the document for exact specifications by model.

GS2K Product details

Description

1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX XXXX = Marking code Graphic Symbol 1 2 Note: 1. Halogen free "Green” products are defined as those which contain

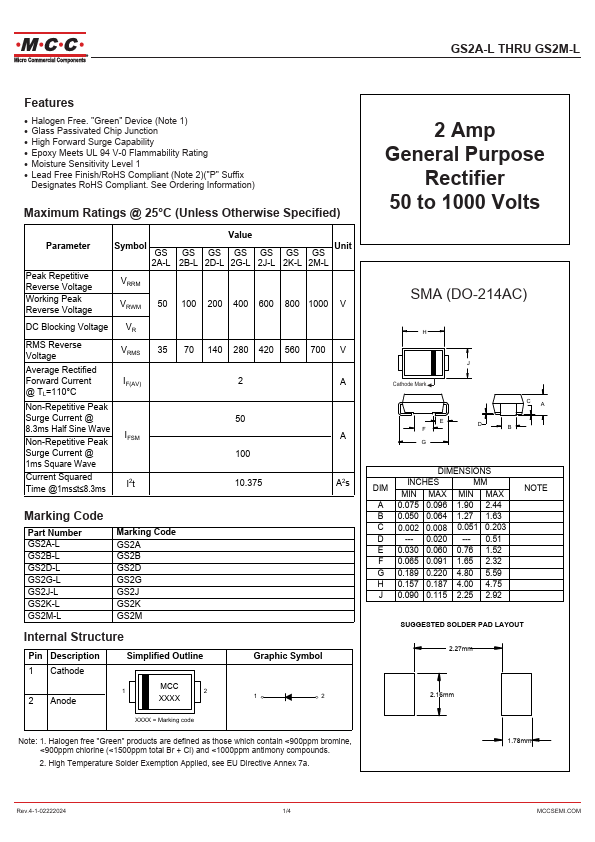

Features

Halogen Free. "Green" Device (Note 1).
Glass Passivated Chip Junction.
High Forward Surge Capability.
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Symbol GS 2A-L Value GS GS GS GS 2B-L.
