LB6S - 1.0 Amp Single Phase Glass Passivated Bridge Rectifier

MCC

📥 Download Datasheet

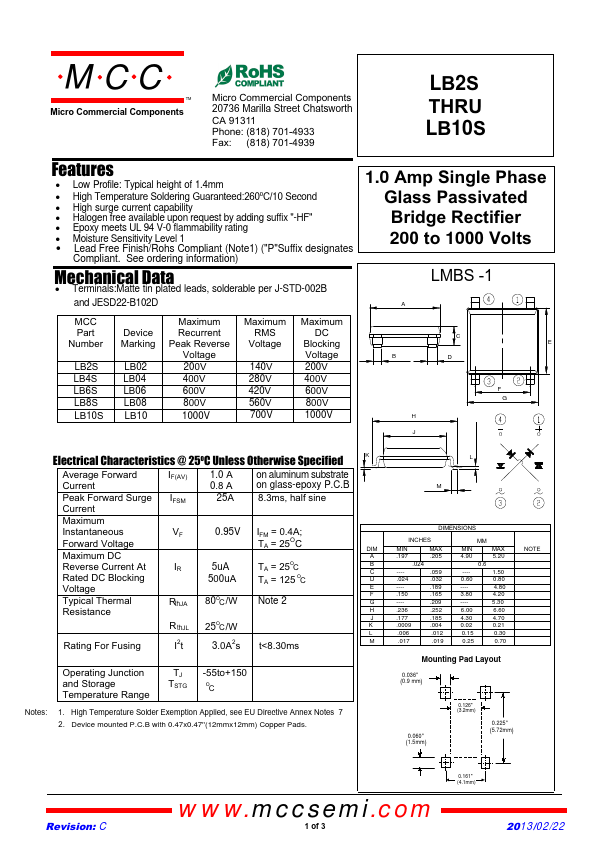

LB6S Datasheet Preview — Preview of LB6S PDF

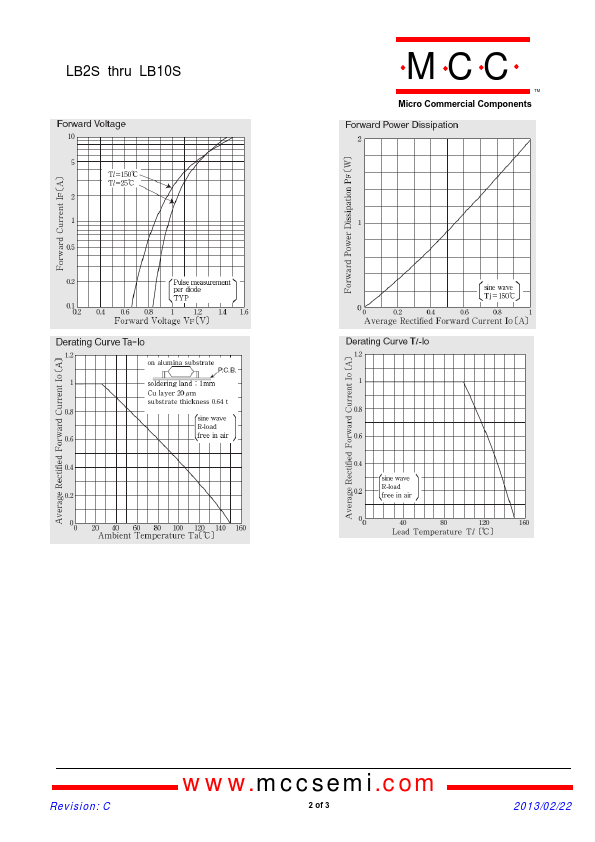

datasheet Preview Page 2

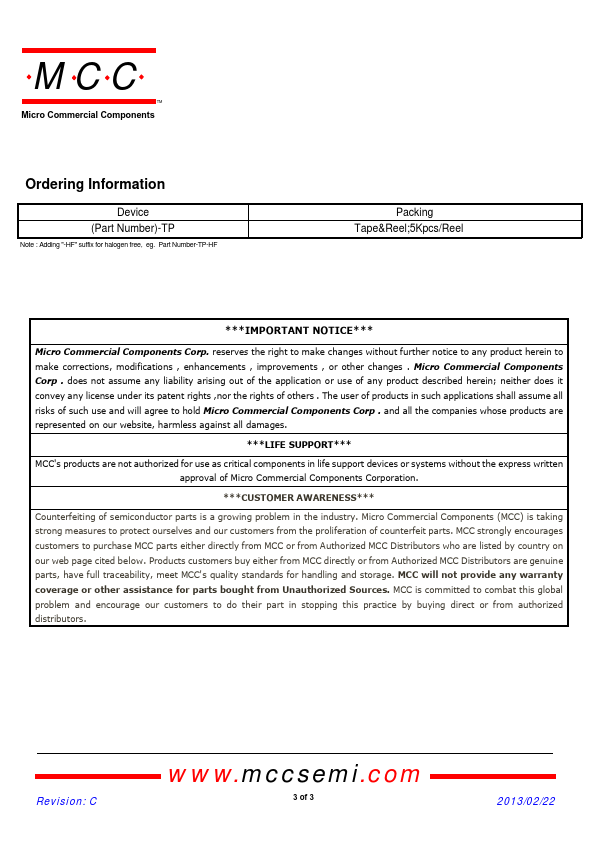

datasheet Preview Page 3

Datasheet Details

Part number	LB6S
Manufacturer	MCC
File Size	275.34 KB
Description	1.0 Amp Single Phase Glass Passivated Bridge Rectifier
Datasheet	LB6S-MCC.pdf

LB6S Product details

Features

Low Profile: Typical height of 1.4mm.
High Temperature Soldering Guaranteed:260oC/10 Second.
High surge current capability.
Halogen free available upon request by adding suffix "-HF".
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data.
Terminals:Matte tin plated leads, solderable per J-STD.
