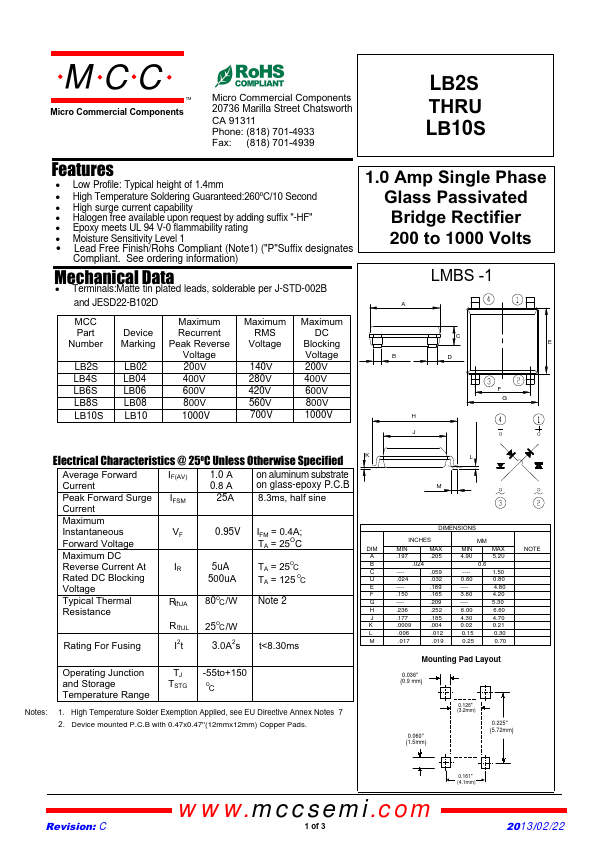

LB8S - 1.0 Amp Single Phase Glass Passivated Bridge Rectifier

MCC

Datasheet Details

Part number	LB8S
Manufacturer	MCC
File Size	275.35 KB
Description	1.0 Amp Single Phase Glass Passivated Bridge Rectifier
Datasheet	LB8S-MCC.pdf

Low Profile: Typical height of 1.4mm.
High Temperature Soldering Guaranteed:260oC/10 Second.
High surge current capability.
Halogen free available upon request by adding suffix "-HF".
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.

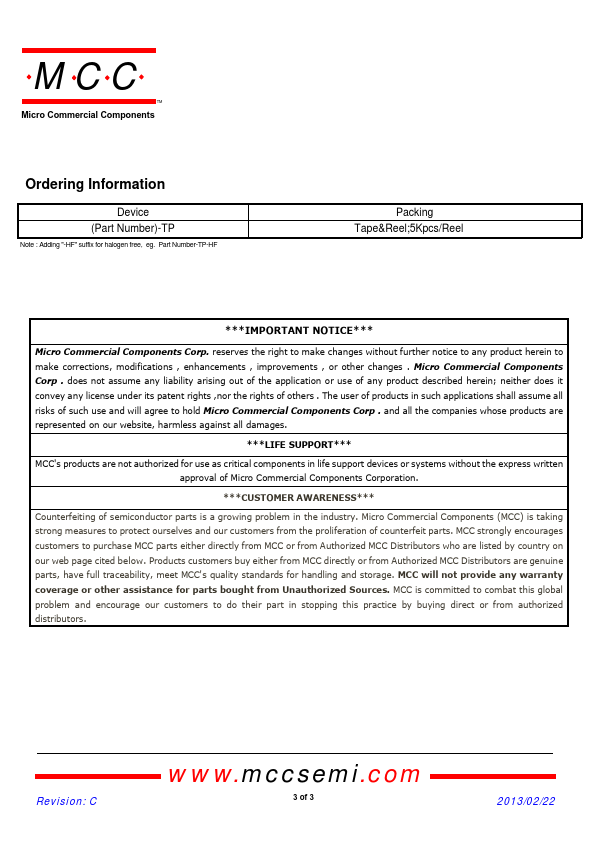

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data.
Terminals:Matte tin plated leads, solderable per J-STD.
