MBR120100 - (MBR12020 - MBR120100) Schottky Barrier

Product Overview

MCC

📥 Download Datasheet

MBR120100 (MBR12020 - MBR120100) Schottky Barrier by MCC - Datasheet Preview — Datasheet preview – MBR120100

Datasheet Details

Part number	MBR120100
Manufacturer	MCC
File Size	436.57 KB
Description	(MBR12020 - MBR120100) Schottky Barrier
Datasheet	MBR120100 Datasheet

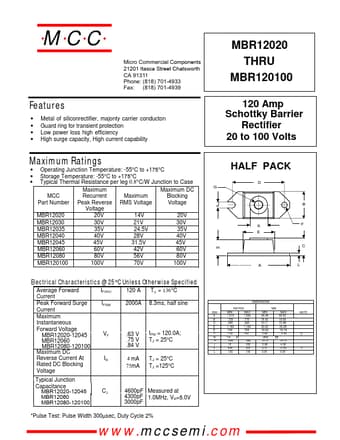

Additional preview pages of the MBR120100 datasheet.

Product details

Features

Metal of siliconrectifier, majonty carrier conducton Guard ring for transient protection Low power loss high efficiency High surge capacity, High current capability Maximum Ratings.
Operating Junction Temperature: -55°C to +175°C Storage Temperature: -55°C to +175°C Typical Thermal Resistance per leg 0.8°C/W Junction to Case Maximum Maximum DC MCC Recurrent Maximum Blocking Part Number Peak Reverse RMS Voltage Voltage Voltage.
