MC7805CT
MC7805CT is Three-Terminal Positive Voltage Regulators manufactured by Micro Commercial Components.
Features
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- No External ponents Required
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free Available Upon Request By Adding Suffix "-HF"
- Lead Free Finish/Ro HS pliant(Note1) ("P" Suffix
Designates Ro HS pliant. See ordering information)
Three-Terminal Positive Voltage
Regulators
Maximum Ratings
Parameter
Symbol
Input Voltage
Output Current Power Dissipation Operating Junction Temperature5DQJH Storage Temperature Range
Io PD TOPR TSTG
Value Unit
-20~125 ℃
-55~125 ℃
Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7a.
TO-220
1 23
PIN 1.
PIN 2. PIN 3.
INPUT
GND OUTPUT
DIMENSIONS
INCHES
MIN MAX MIN MAX
A 0.560 0.625 14.22...

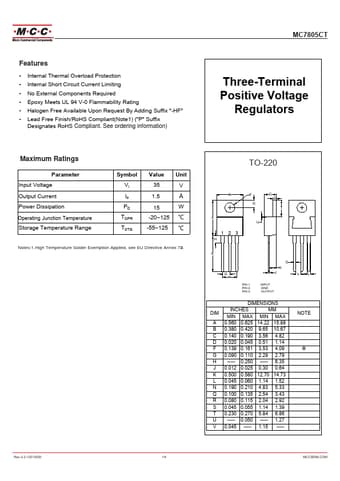

Representative MC7805CT image (package may vary by manufacturer)
