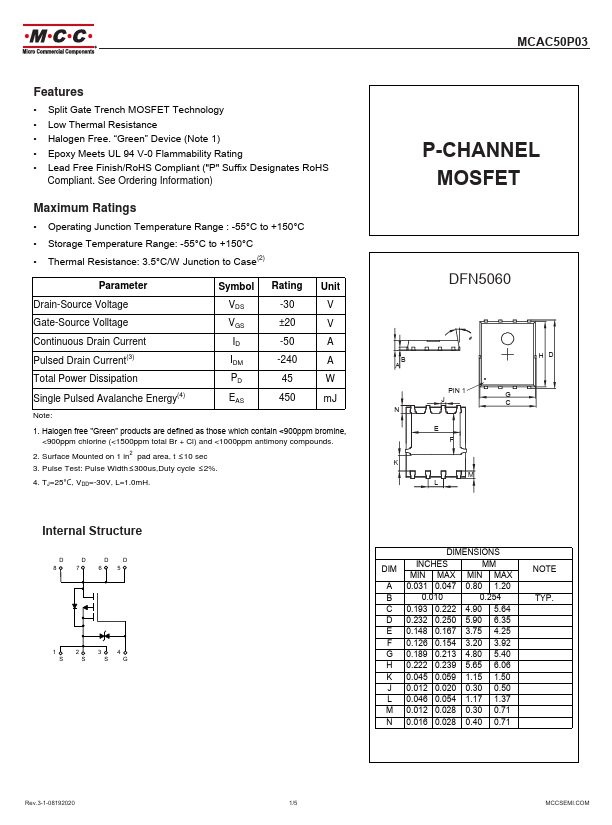

MCAC50P03
Features
- Split Gate Trench MOSFET Technology
- Low Thermal Resistance
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range : -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 3.5°C/W Junction to Case(2)
Parameter
Symbol Rating Unit
Drain-Source Voltage Gate-Source Volltage
-30
±20
Continuous Drain Current Pulsed Drain Current(3)
-50
-240
Total Power Dissipation Single Pulsed Avalanche Energy(4)
450 m J
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. Surface Mounted on 1 in2 pad area, t ≤10 sec 3. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%. 4. TJ=25℃, VDD=-30V, L=1.0m H.
P-CHANNEL...
