MMBD7000 - 350mW Dual Series Switching Diode

MCC

📥 Download Datasheet

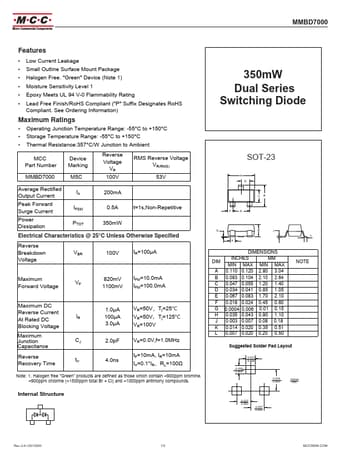

MMBD7000 Datasheet Preview — Preview of MMBD7000 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMBD7000
Manufacturer	MCC
File Size	867.04 KB
Description	350mW Dual Series Switching Diode
Datasheet	MMBD7000-MCC.pdf

MMBD7000 Product details

Features

Low Current Leakage.
Small Outline Surface Mount Package.
Halogen Free. "Green" Device (Note 1).
Moisture Sensitivity Level 1.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
Operating Junction Temperature Range: -55°C to +150°C.
Storage Temperature Range: -55°C to +150°C.
Thermal Resistance:357°C/W Juncti.
