MSJPF11N65 - N-CHANNEL MOSFET

Datasheet Summary

Features

  • Very Low FOM RDS(on)×Q g.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range : -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 80°C/W Junction to Ambient.

📥 Download Datasheet

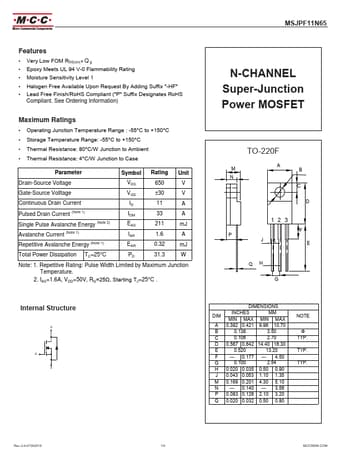

Datasheet preview – MSJPF11N65

Datasheet Details

Part number MSJPF11N65
Manufacturer MCC
File Size 502.19 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet MSJPF11N65 Datasheet
Additional preview pages of the MSJPF11N65 datasheet.
