MUR1540 - RECTIFIER

Product Overview

MCC

Part number	MUR1540
Manufacturer	MCC
File Size	133.76 KB
Description	RECTIFIER
Datasheet	MUR1540 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR1540, MUR1510. Please refer to the document for exact specifications by model.

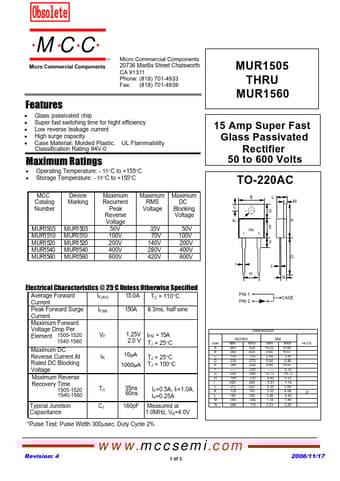

Additional preview pages of the MUR1540 datasheet.

Glass passivated chip.
Super fast switching time for hight efficiency.
Low reverse leakage current.
High surge capacity.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Maximum Ratings.
Operating Temperature: - 55°C to +155°C.
Storage Temperature: - 55°C to +155°C MCC Catalog Number Device Marking MUR1505 MUR1510 MUR1520 MUR1540 MUR1560 MUR1505 MUR1510 MUR1520 MUR1540 MUR1560 Maximum Recurrent Peak Re.
