S1A-L 1 Amp Silicon Rectifier

MCC

S1A-L Description

S1A-L THRU S1M-L .

S1A-L Features

* Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information)

S1A-L Applications

* Halogen Free. “Green” Device (Note 2)
* Extremely Low Thermal Resistance
* Epoxy Meets UL 94 V-0 Flammability Rating
* Moisture Sensitivity Level 1 1 Amp Silicon Rectifier 50 to 1000 Volts Maximum Ratings
* Operating Junction Temperature Range: -55⁰C to +1

📥 Download Datasheet

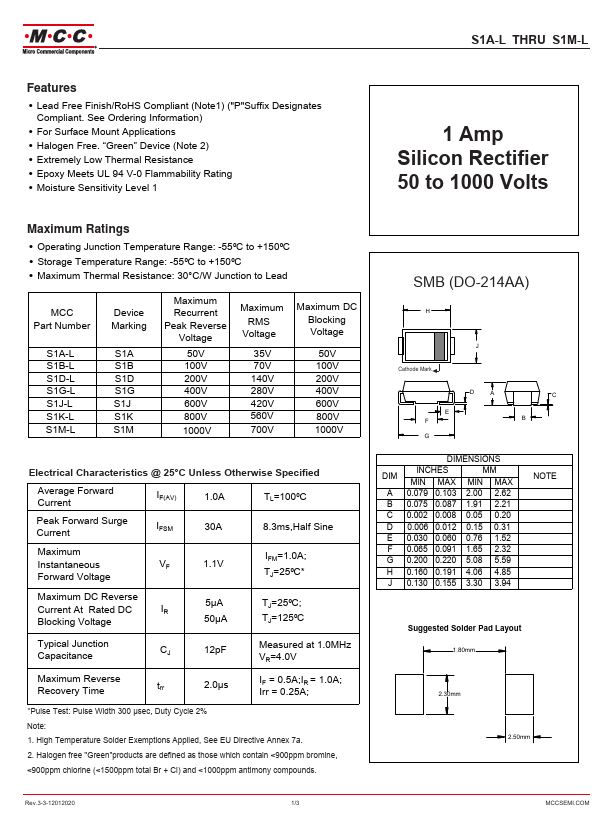

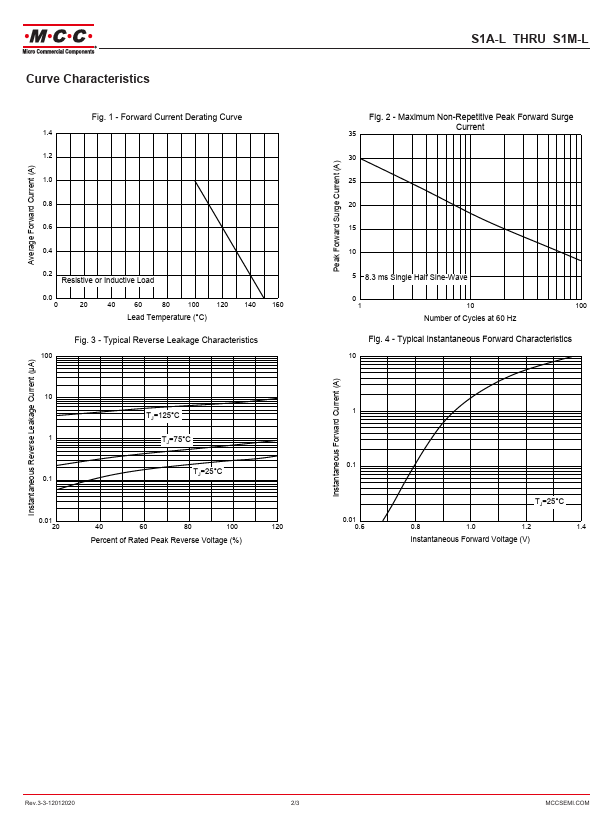

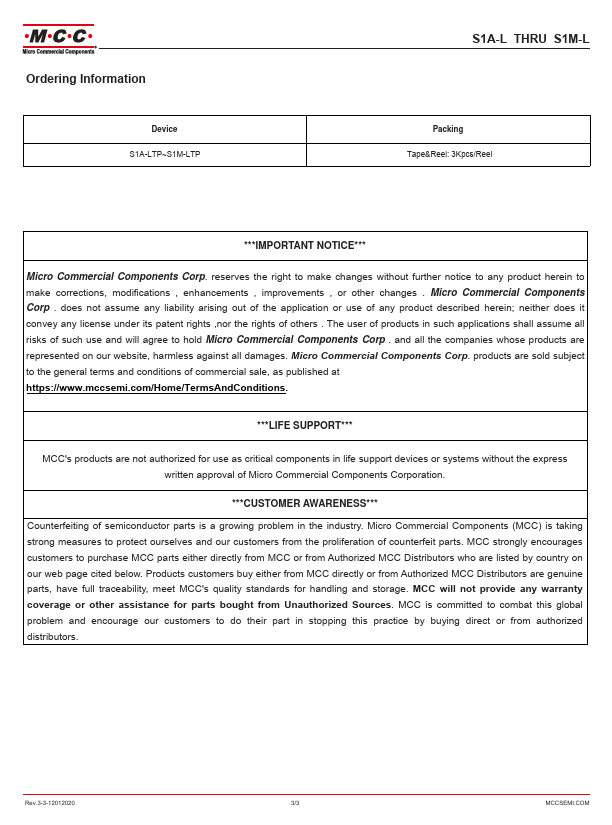

S1A-L Datasheet Preview — Preview of S1A-L PDF

Datasheet Details

Part number: S1A-L
Manufacturer: MCC
File Size: 532.18 KB
Datasheet: S1A-L-MCC.pdf
Description: 1 Amp Silicon Rectifier
