S1K-L 1 Amp Silicon Rectifier

MCC

Description

S1A-L THRU S1M-L .

📥 Download Datasheet

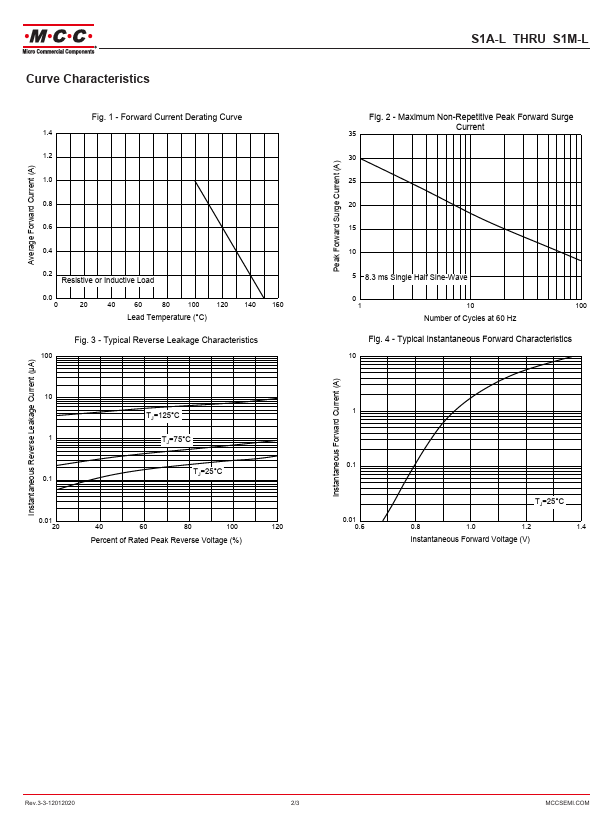

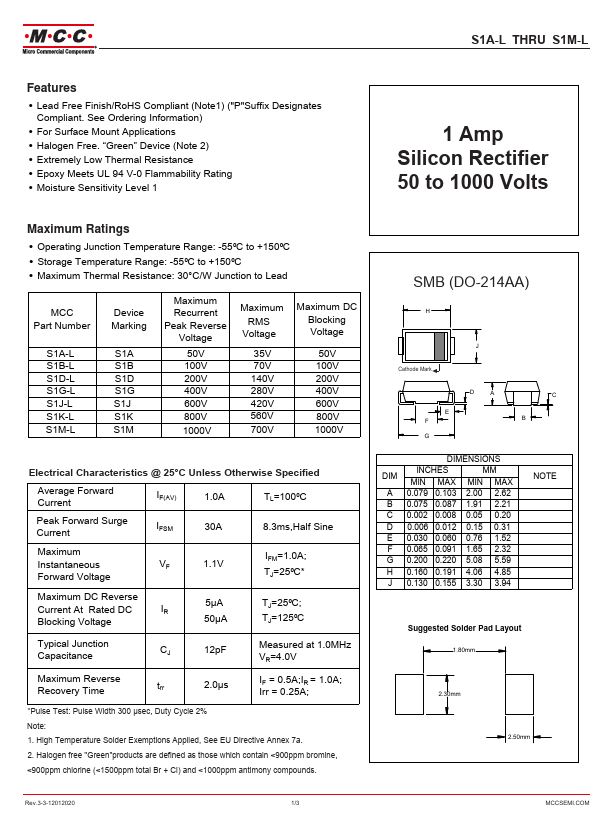

S1K-L Datasheet Preview — Preview of S1K-L PDF

Datasheet Specifications

Part number: S1K-L
Manufacturer: MCC
File Size: 429.07 KB
Datasheet: S1K-L-MCC.pdf
Description: 1 Amp Silicon Rectifier

Features

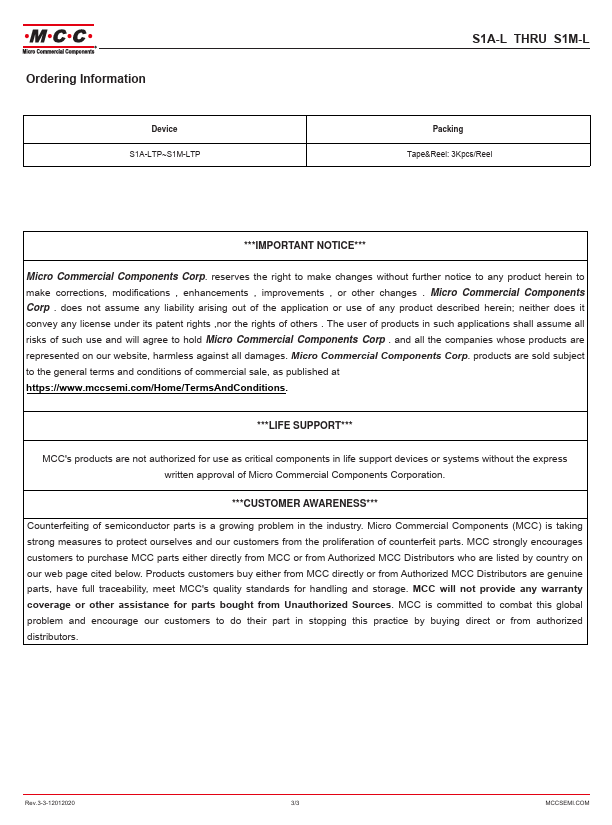

* Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information)

Applications

* Halogen Free. “Green” Device (Note 2)
* Extremely Low Thermal Resistance
* Epoxy Meets UL 94 V-0 Flammability Rating
* Moisture Sensitivity Level 1 1 Amp Silicon Rectifier 50 to 1000 Volts Maximum Ratings
* Operating Junction Temperature Range: -55⁰C to +1
