SI2305BHE3 - P-Channel MOSFET

Datasheet Summary

Features

  • Halogen Free.
  • AEC-Q101 Qualified.
  • Low RDS(ON).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SI2305BHE3 P-Channel MOSFET Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature: -55°C to +150°C.
  • Thermal Resistance: 90°C/W Junction to Ambient(Note 1) Para.

📥 Download Datasheet

Datasheet preview – SI2305BHE3

Datasheet Details

Part number SI2305BHE3
Manufacturer MCC
File Size 688.14 KB
Description P-Channel MOSFET
Datasheet download datasheet SI2305BHE3 Datasheet

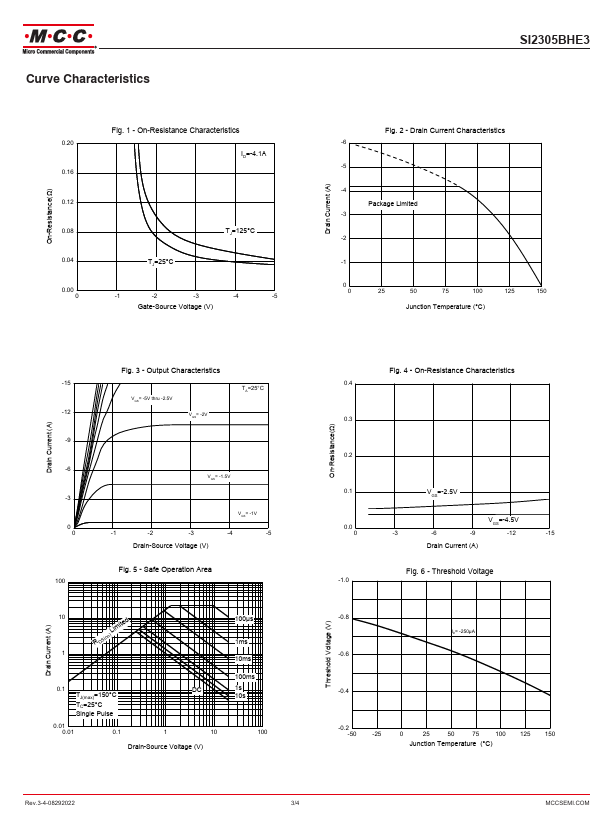

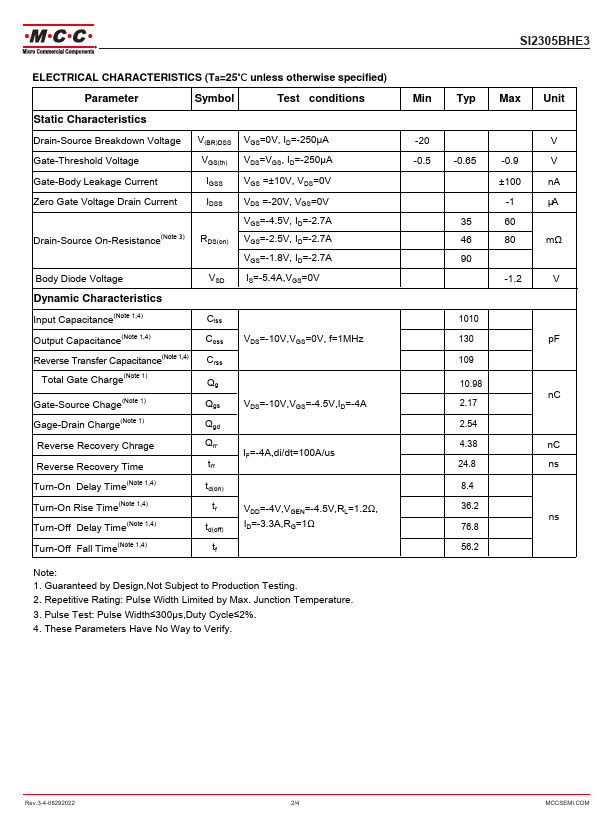

Additional preview pages of the SI2305BHE3 datasheet.

📁 Similar Datasheet

  • Si2305 - P-Channel MOSFET (SiPU)
  • SI2305 - p-Channel MOSFET (ETC)
  • SI2305 - 20V P-Channel MOSFET (HT Semi)
  • SI2305 - P-Channel MOSFET (HAOHAI)
  • SI2305A - P-Channel MOSFET (UMW)
  • SI2305ADS - P-Channel MOSFET (Vishay Siliconix)
  • SI2305CDS - P-Channel MOSFET (Vishay Siliconix)
  • SI2305DS - P-Channel MOSFET (Vishay Siliconix)
  • SI2305DS - P-Channel Power MOSFET (TOPSKY)
  • SI2300 - N-Channel MOSFET (Kexin)
Other Datasheets by MCC
  • SI2305B - P-Channel MOSFET
  • SI2305 - P-Channel MOSFET
  • SI2300 - N-Channel MOSFET
  • SI2301 - P-Channel Enhancement Mode Field Effect Transistor
  • SI2301A - P-Channel MOSFET
  • SI2302 - N-channel MOSFET
  • SI2302A - N-Channel MOSFET
  • SI2303 - P-Channel Enhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text

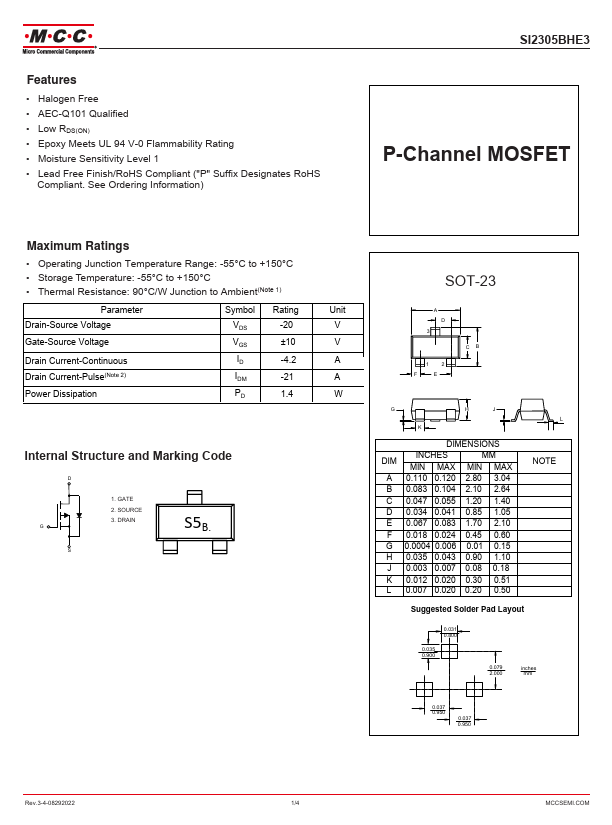

Features • Halogen Free • AEC-Q101 Qualified • Low RDS(ON) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SI2305BHE3 P-Channel MOSFET Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature: -55°C to +150°C • Thermal Resistance: 90°C/W Junction to Ambient(Note 1) Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous Drain Current-Pulse(Note 2) Power Dissipation Symbol Rating Unit VDS -20 V VGS ±10 V ID -4.2 A IDM -21 A PD 1.4 W Internal Structure and Marking Code D 1. GATE 2. SOURCE G 3. DRAIN S5B.
