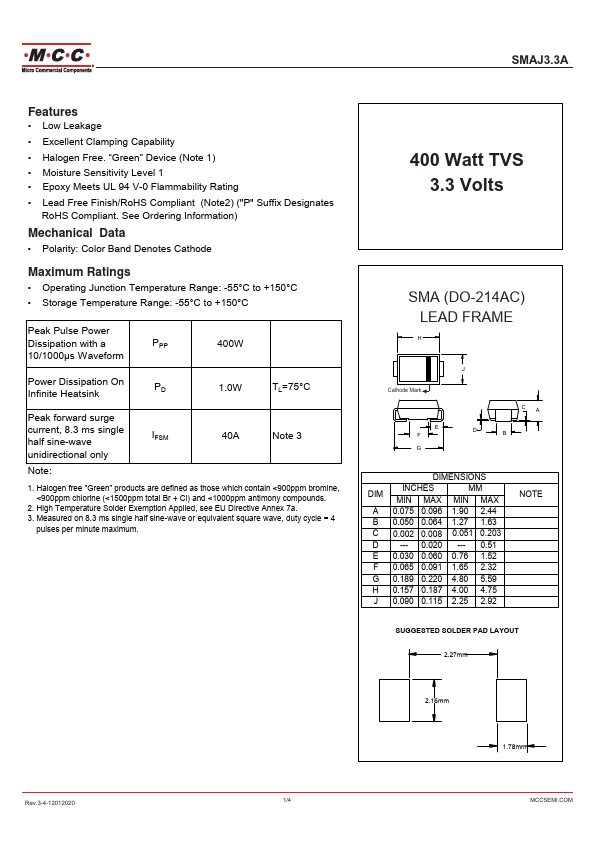

SMAJ3.3A
Features
- Low Leakage
- Excellent Clamping Capability
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant (Note2) ("P" Suffix Designates
Ro HS pliant. See Ordering Information)
Mechanical Data
- Polarity: Color Band Denotes Cathode
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
Peak Pulse Power
Dissipation with a
10/1000μs Waveform
400W
Power Dissipation On Infinite Heatsink
1.0W
TL=75°C
Peak forward surge current, 8.3 ms single half sine-wave
IFSM unidirectional only
40A
Note 3
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. 3. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4...
