SMLJ60S10 6 Amp Glass Passivated Rectifier

SMLJ60S10 Description

.

SMLJ60S10 Features

* Low Leakage
* Epoxy Meets UL 94 V-0 Flammability Rating
* Moisture Sensitivity Level 1
* High Surge Current Capability
* Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information)
* Halogen Free. “Green” Device

📥 Download Datasheet

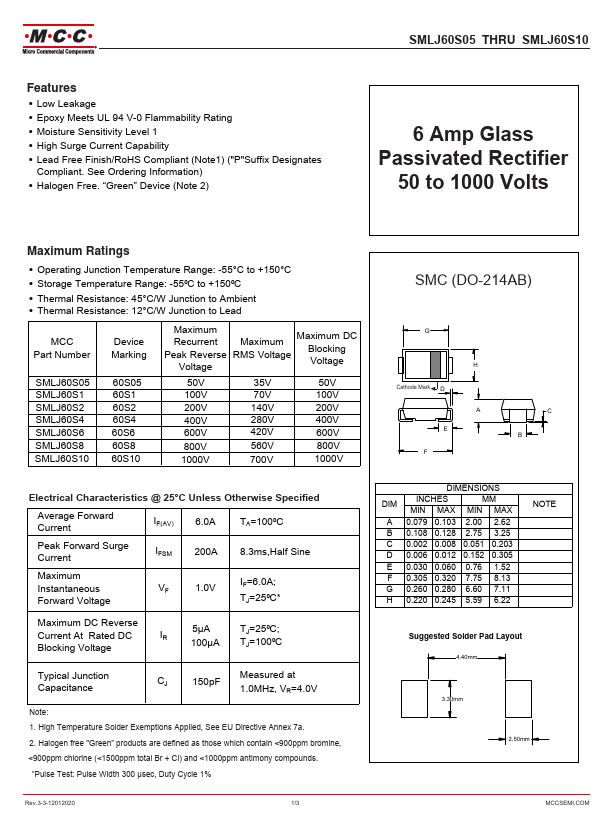

Preview of SMLJ60S10 PDF

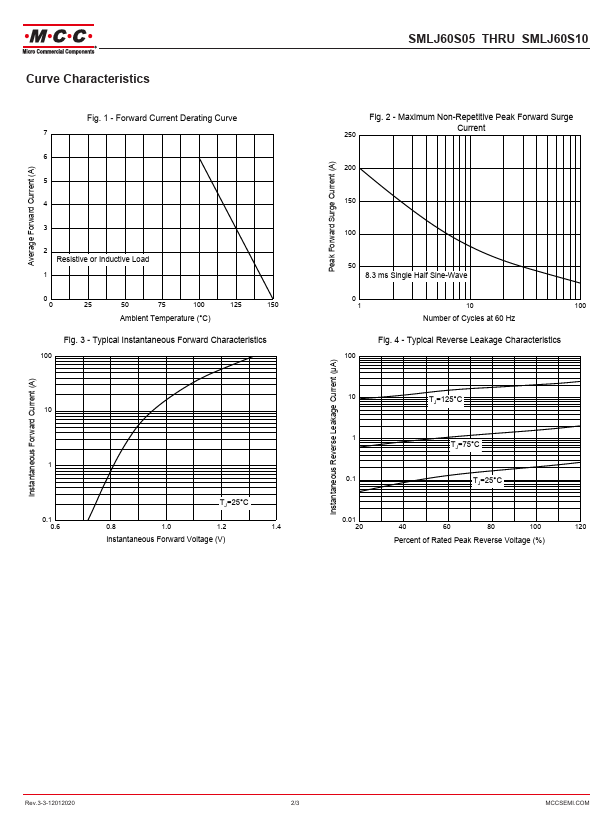

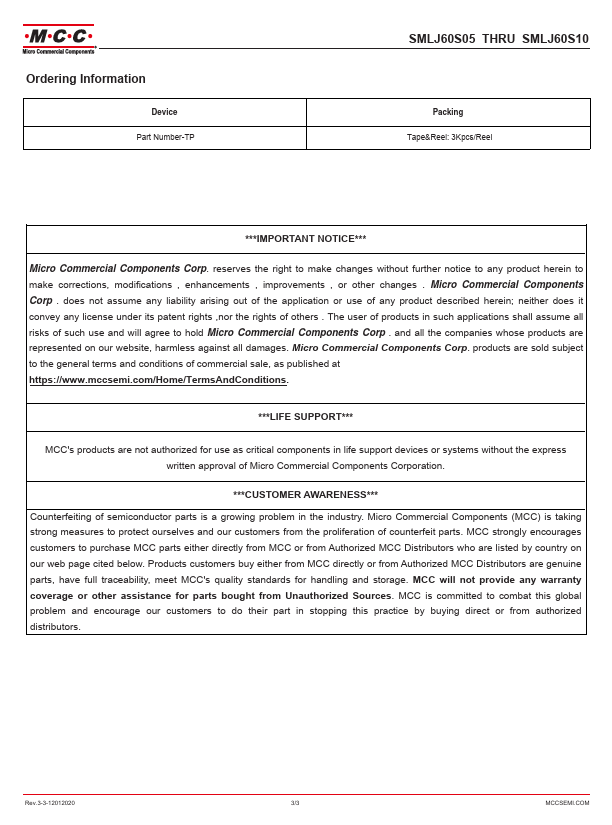

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMLJ60S10
Manufacturer
MCC
File Size
601.47 KB
Datasheet
SMLJ60S10-MCC.pdf
Description
6 Amp Glass Passivated Rectifier
