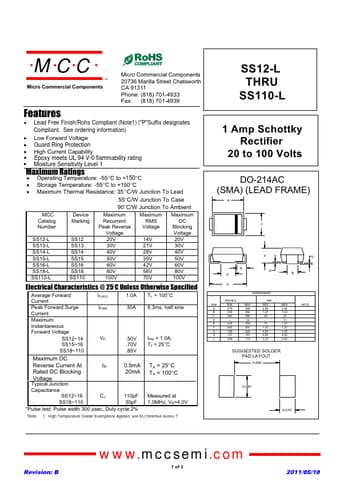

SS16-L, SS110-L - (SS12-L - SS110-L) 1 Amp Schottky Rectifier

MCC

Datasheet Details

Part number	SS16-L, SS110-L
Manufacturer	MCC
File Size	307.71 KB
Description	(SS12-L - SS110-L) 1 Amp Schottky Rectifier
Datasheet	SS110-L_MCC.pdf
Note	This datasheet PDF includes multiple part numbers: SS16-L, SS110-L. Please refer to the document for exact specifications by model.

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Low Forward Voltage Guard Ring Protection High Current Capability Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Maximum Ratings Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C Maximum Thermal Resistance; 35 °C/W Junction To Lead 55°C/W Junction To Case.
