TZX16A - 500mW Silicon Zener Diodes

Product Overview

MCC

Part number	TZX16A
Manufacturer	MCC
File Size	424.56 KB
Description	500mW Silicon Zener Diodes
Datasheet	TZX16A Datasheet
Note	This datasheet PDF includes multiple part numbers: TZX16A, TZX2V4. Please refer to the document for exact specifications by model.

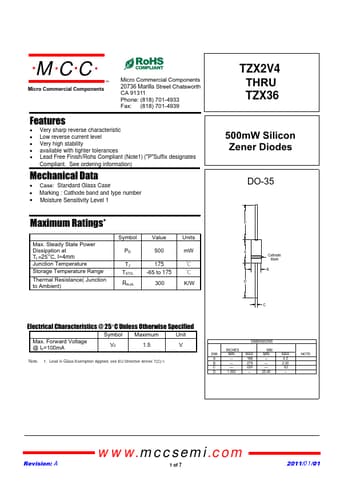

Additional preview pages of the TZX16A datasheet.

x Very sharp reverse characteristic x Low reverse current level x Very high stability x available with tighter tolerances.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data x Case: Standard Glass Case.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 TZX2V4 THRU TZX36 500mW Silicon Zener Diodes DO-35 Maximum Ratings.
Max. Steady State Power Dissipation at TL=25OC, I=4mm Junc.
