TZX27A Datasheet 500mw Silicon Zener Diodes

Manufacturer: Micro Commercial Components

Overview: MCC TM Micro mercial ponents omponents 20736 Marilla Street Chatsworth !"# $ % !

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	TZX27A
Manufacturer	Micro Commercial Components
File Size	424.56 KB
Description	500mW Silicon Zener Diodes

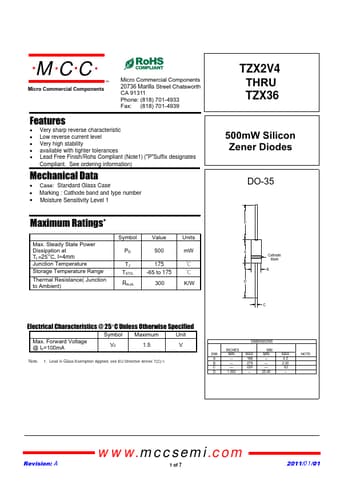

Datasheet	TZX27A TZX2V4 Datasheet (PDF)

x Very sharp reverse characteristic x Low reverse current level x Very high stability x available with tighter tolerances.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data x Case: Standard Glass Case.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 TZX2V4 THRU TZX36 500mW Silicon Zener Diodes DO-35 Maximum Ratings.
Max. Steady State Power Dissipation at TL=25OC, I=4mm Junc.
