TZX30C, TZX2V4 - 500mW Silicon Zener Diodes

Name: TZX30C
SKU: TZX30C-1215425

MCC

The TZX30C by MCC is a 500mW Silicon Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	TZX30C, TZX2V4
Manufacturer	MCC
File Size	424.56 KB
Description	500mW Silicon Zener Diodes
Datasheet	TZX2V4-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: TZX30C, TZX2V4. Please refer to the document for exact specifications by model.

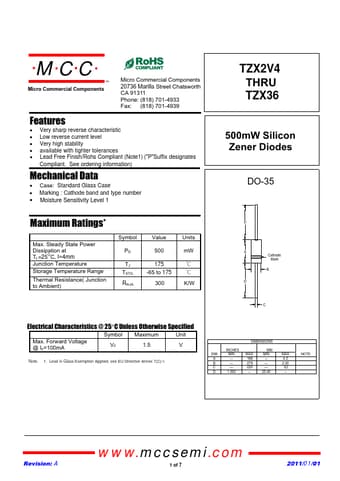

Additional preview pages of the TZX30C datasheet.

x Very sharp reverse characteristic x Low reverse current level x Very high stability x available with tighter tolerances.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data x Case: Standard Glass Case.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 TZX2V4 THRU TZX36 500mW Silicon Zener Diodes DO-35 Maximum Ratings.
Max. Steady State Power Dissipation at TL=25OC, I=4mm Junc.
