TZX33A Datasheet 500mW Silicon Zener Diodes

Manufacturer: Micro Commercial Components

Download the TZX33A datasheet PDF. This datasheet also includes the TZX2V4 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

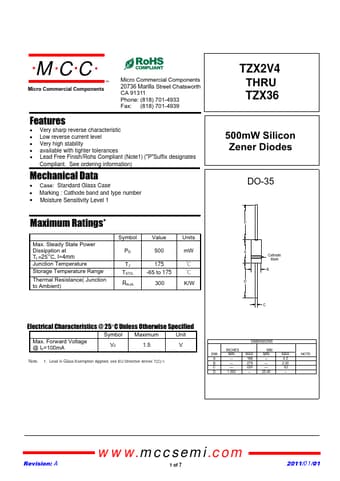

TZX33A 500mw silicon zener diodes by Micro Commercial Components - Datasheet Preview — Note: The manufacturer provides a single datasheet file (TZX2V4-MCC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	TZX33A
Manufacturer	Micro Commercial Components
File Size	424.56 KB
Description	500mW Silicon Zener Diodes
Download	TZX33A Download (PDF)

Overview

MCC TM Micro Commercial Components omponents 20736 Marilla Street Chatsworth !"# $ % !

Key Features

x Very sharp reverse characteristic x Low reverse current level x Very high stability x available with tighter tolerances.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data x Case: Standard Glass Case.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 TZX2V4 THRU TZX36 500mW Silicon Zener Diodes DO-35 Maximum Ratings.
Max. Steady State Power Dissipation at TL=25OC, I=4mm Junc.
