TZX8V2D

The TZX8V2D is 500mW Silicon Zener Diodes designed by MCC.

Product Overview

MCC

Part number	TZX8V2D, TZX2V4
Manufacturer	MCC
File Size	424.56 KB
Description	500mW Silicon Zener Diodes
Datasheet	TZX2V4-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: TZX8V2D, TZX2V4. Please refer to the document for exact specifications by model.

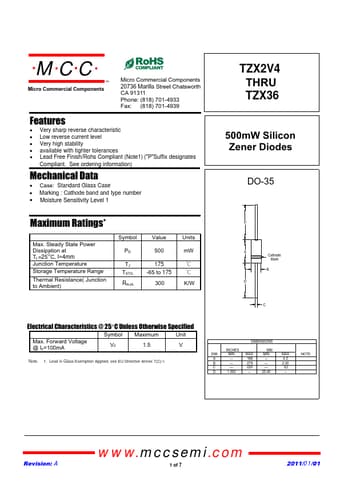

Additional preview pages of the TZX8V2D datasheet.

x Very sharp reverse characteristic x Low reverse current level x Very high stability x available with tighter tolerances.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data x Case: Standard Glass Case.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 TZX2V4 THRU TZX36 500mW Silicon Zener Diodes DO-35 Maximum Ratings.
Max. Steady State Power Dissipation at TL=25OC, I=4mm Junc.
