SK310, SK32 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SK310 Description

SK32 THRU SK3200 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Amperes DO-214AA/SMB .

SK310 Applications

* Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals 0.096(2.44) 0.084(2.13) MECHANICAL DATA 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.220(5.59) 0.205(5.21) Dimensions

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK310, SK32. Please refer to the document for exact specifications by model.

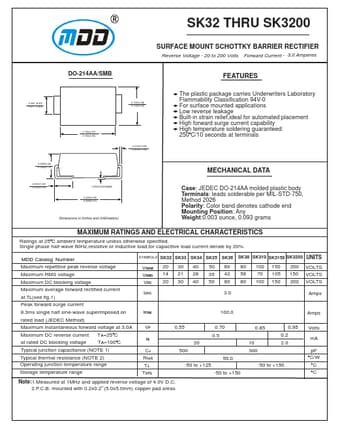

datasheet Preview Page 2

Datasheet Details

Part number
SK310, SK32
Manufacturer
MDD ELECTRONIC
File Size
420.90 KB
Datasheet
SK32-MDDELECTRONIC.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SK310, SK32.
Please refer to the document for exact specifications by model.
