20KP32A, 20KP20A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Datasheet Details

Part number	20KP32A, 20KP20A
Manufacturer	MDE Semiconductor
File Size	62.33 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

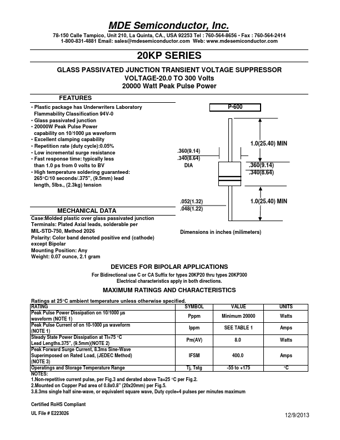

Datasheet	20KP20A-MDESemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP32A, 20KP20A. Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
20000W Peak Pulse Power capability on 10/1000 µs waveform.
Excellent clamping capability.
Repetition rate (duty cycle):0.05%.
Low incremental surge resistance.
Fast response time: typically less than 1.0 ps from 0 volts to BV.
High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length, 5lbs. , (2.
