20KP80A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

📥 Download Datasheet

20KP80A GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR by MDE Semiconductor - Datasheet Preview — Datasheet preview – 20KP80A

Datasheet Details

Part number	20KP80A
Manufacturer	MDE Semiconductor
File Size	62.33 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	20KP80A Datasheet
Note	This datasheet PDF includes multiple part numbers: 20KP80A, 20KP20A. Please refer to the document for exact specifications by model.

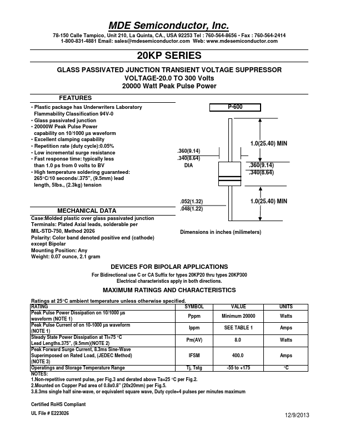

Additional preview pages of the 20KP80A datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
20000W Peak Pulse Power capability on 10/1000 µs waveform.
Excellent clamping capability.
Repetition rate (duty cycle):0.05%.
Low incremental surge resistance.
Fast response time: typically less than 1.0 ps from 0 volts to BV.
High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length, 5lbs. , (2.
