DIP12-1Bxx-xx - (DIP Series) Molded DIP Reed Relays

Download the DIP12-1Bxx-xx datasheet PDF. This datasheet also covers the DIP24-1A72-11 variant, as both devices belong to the same (dip series) molded dip reed relays family and are provided as variant models within a single manufacturer datasheet.

General Description

The DIP series is a very compact design having a low profile package and a high profile package.

This series is compatible with all DIP relays.

Low profile package Standard pin configurations IC-pin compatible 4.25 kVDC breakdown voltage for p

Key Features

  • High resistance option available.
  • SMD version available.
  • Diode option available.
  • Mercury wetted switch option available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DIP24-1A72-11_MEDER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DIP12-1Bxx-xx
Manufacturer MEDER
File Size 478.78 KB
Description (DIP Series) Molded DIP Reed Relays
Datasheet download datasheet DIP12-1Bxx-xx Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DIP14 DIP-14 Saga
DIP14-8 Metal Dual Inline Package RFM
DIP16 LSI Assembly Rohm
DIP16 Package Outline Dimensions Jiangsu Changjiang
DIP16 REED RELAYS REMtech

Other Datasheets by MEDER

Part Number Description
DIP12-1Axx-xx (DIP Series) Molded DIP Reed Relays
DIP12-1Cxx-xx (DIP Series) Molded DIP Reed Relays
DIP12-2Axx-xx (DIP Series) Molded DIP Reed Relays
DIP15-1Axx-xx (DIP Series) Molded DIP Reed Relays
DIP15-1Bxx-xx (DIP Series) Molded DIP Reed Relays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

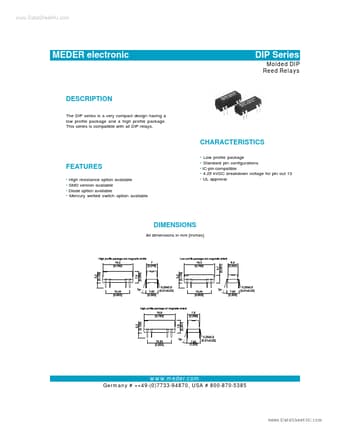

www.DataSheet4U.com MEDER electronic DIP Series Molded DIP Reed Relays DESCRIPTION The DIP series is a very compact design having a low profile package and a high profile package. This series is compatible with all DIP relays. CHARACTERISTICS • Low profile package • Standard pin configurations • IC-pin compatible • 4.25 kVDC breakdown voltage for pin out 13 • UL approval FEATURES • High resistance option available • SMD version available • Diode option available • Mercury wetted switch option available DIMENSIONS All dimensions in mm [inches] Germany # ++49-(0)7733-94870, USA # 800-870-5385 www.meder.com www.DataSheet4U.
