BY127 - GENERAL PURPOSE RECTIFIER

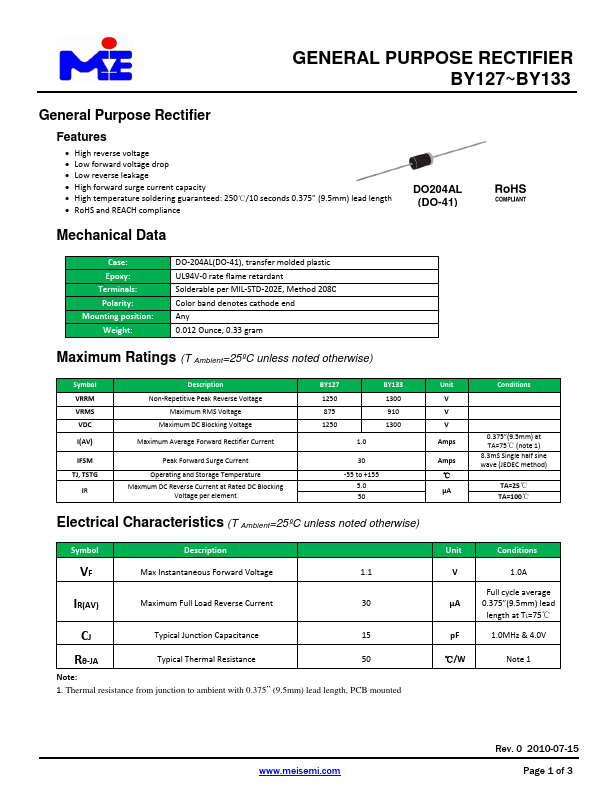

BY127 Datasheet Preview — Preview of BY127 PDF

Datasheet Details

Part number	BY127
Manufacturer	MEI SEMI
File Size	565.26 KB
Description	GENERAL PURPOSE RECTIFIER
Datasheet	BY127-MEISEMI.pdf

BY127 Product details

Description

Non-Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectifier Current Peak Forward Surge Current Operating and Storage Temperature Maxmum DC Reverse Current at Rated DC Blocking Voltage per element BY127 1250 875 1250 BY133 1300 910 1300 1.0 30 -55 to +155 5.0 50 Unit V V V Amps Amps ℃ μA Conditions 0.375”(9.5mm) at TA=75℃ (note 1) 8.3mS Single half sine wave (JEDEC method) TA=25℃ TA=100℃ Electrical Characteristics (T Ambient=25ºC un

Features

High reverse voltage.
Low forward voltage drop.
Low reverse leakage.
High forward surge current capacity.
High temperature soldering guaranteed: 250℃/10 seconds 0.375” (9.5mm) lead length.
RoHS and REACH compliance DO204AL (DO-41) Mechanical Data Case: Epoxy: Terminals: Polarity: Mounting position: Weight: DO-204AL(DO-41), transfer molded plastic UL94V-0 rate flame retardant Solderable per MIL-STD-202E, Method 208C Color band denotes cathode end Any 0.012 Ounce.
