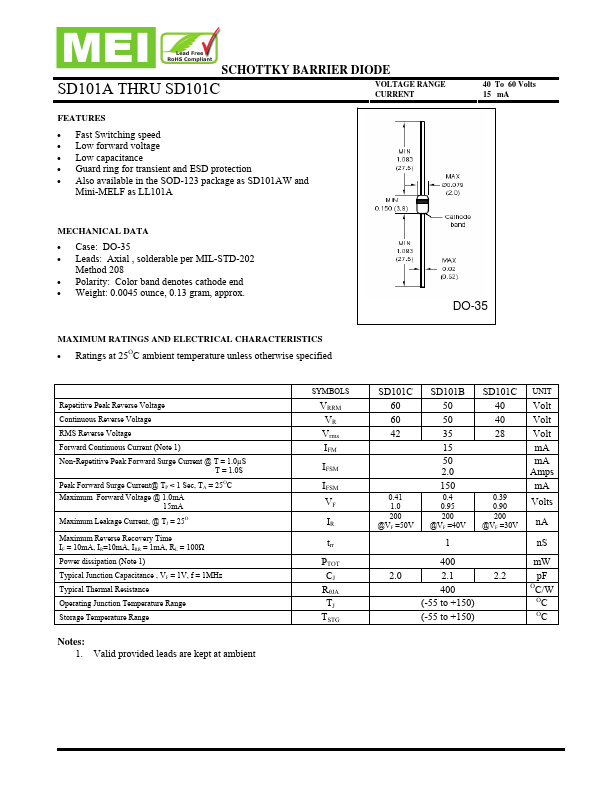

SD101B
FEATURES
- Fast Switching speed
- Low forward voltage
- Low capacitance
- Guard ring for transient and ESD protection
- Also available in the SOD-123 package as SD101AW and
Mini-MELF as LL101A
40 To 60 Volts 15 m A
MECHANICAL DATA
- Case: DO-35
- Leads: Axial , solderable per MIL-STD-202
Method 208
- Polarity: Color band denotes cathode end
- Weight: 0.0045 ounce, 0.13 gram, approx.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
- Ratings at 25OC ambient temperature unless otherwise specified
DO-35
Repetitive Peak Reverse Voltage Continuous Reverse Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current @ T = 1.0µS
T = 1.0S Peak Forward Surge Current@ TP < 1 Sec, TA = 25OC Maximum Forward Voltage @ 1.0m A
15m A Maximum Leakage Current, @ TJ = 25O
Maximum Reverse Recovery Time IF = 10m A, IR=10m A, IRR = 1m A, RL = 100Ώ Power dissipation (Note 1) Typical Junction Capacitance , VF = 1V, f = 1MHz Typical Thermal Resistance Operating...
