980020-56-01 Datasheet - MERITEC

980020-56-01 SURFACE MOUNT 0.50mm TSOP SOCKET

www.DataSheet4U.net SURFACE MOUNT SOP SOCKETS No. SKT-01-1098 The PSOP, TSOP and SSOP sockets are designed for use in OEM, prototyping and programming applications. The unique positive locking lid secures devices to high normal force surface mount contacts. The common land-pad foot-print of the socket and device eliminates the need to modify a PCB layout after development stages. These zero insertion force sockets can be effortlessly loaded and unloaded minimizing the potential risk of damaged.

980020-56-01 Features

* For OEM, prototyping, programming and test applications

* Surface mount

* Zero insertion force

* Land pad footprint common for package and socket

* Positive locking lid design

* Effortless loading and unloading

* High normal force contacts

980020-56-01 Datasheet (116.82 KB)

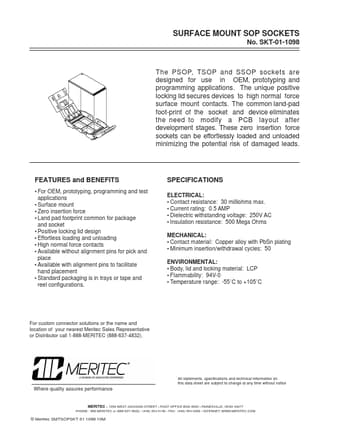

980020-56-01 Datasheet Preview — Preview of 980020-56-01 PDF

Datasheet Details

Part number:

980020-56-01

Manufacturer:

MERITEC

File Size:

116.82 KB

Description:

Surface mount 0.50mm tsop socket.
