SB2150, SB220, Schottky Barrier Rectifier

Schottky Barrier Rectifier 2A, 20~200V DO-15 SB220 to SB2200 .

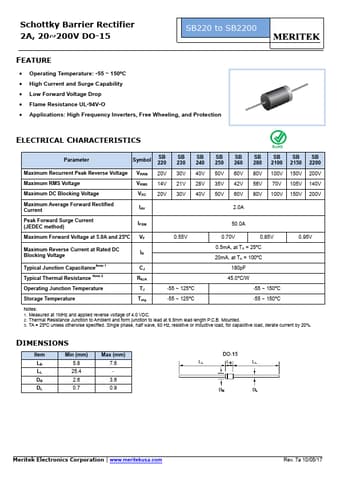

datasheet Preview Page 1 from Datasheet4u.com

SB220-MERITEK.pdf

SB2150 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB2150, SB220. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB2150, SB220

Manufacturer:

MERITEK

File Size:

452.14 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SB2150, SB220.
Please refer to the document for exact specifications by model.

Applications

* High Frequency Inverters, Free Wheeling, and Protection ELECTRICAL CHARACTERISTICS Parameter Symbol SB 220 SB 230 SB 240 SB 250 SB 260 SB SB SB SB 280 2100 2150 2200 Maximum Recurrent Peak Reverse Voltage VRRM 20V 30V 40V 50V 60V 80V 100V 150V 200V Maximum RMS Voltage VRMS 14V 21V 28V 3
