ABS201

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

ABS201 Features

* ▪ Glass Passivated Chip Junction ▪ Reverse Voltage - 100 to 1000 V ▪ Forward Current - 2 A ▪ High Surge Current Capability ▪ Designed for Surface Mount Application MECHANICAL DATA ▪ Case: ABS/LBF ▪ Terminals: Solderable per MIL-STD-750, Method 2026 ▪ Approx. Weight: 88mg 0.0031oz PINNING PIN DESCRI

ABS201 General Description

1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） 3 4 2 1 ABS/LBF Package MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate.

ABS201 Datasheet (259.37 KB)

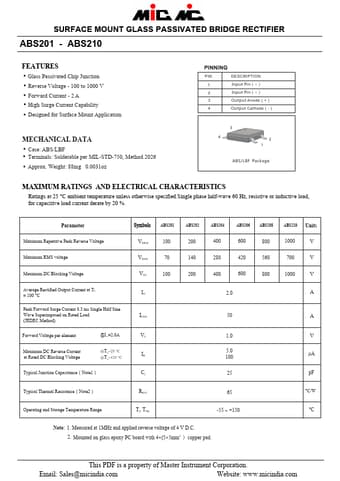

Preview of ABS201 PDF

Datasheet Details

Part number:

ABS201

Manufacturer:

MIC

File Size:

259.37 KB

Description:

Surface mount glass passivated bridge rectifier.
