FR603 - FAST RECOVER RECTIFIER

This page provides the datasheet information for the FR603, a member of the FR601 FAST RECOVER RECTIFIER family.

Features

  • Low cost construction.
  • Fast switching for high efficency.
  • Low reverse leakage.
  • High forward surge current capability.
  • High temperature soldering guaranteed: 260 /10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension.

📥 Download Datasheet

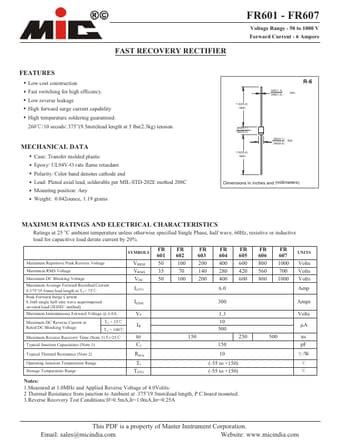

Datasheet preview – FR603
