MMSZ15VBW, MMSZ2V0BW - SURFACE MOUNT ZENER DIODE

MMSZ15VBW Description

MMSZ2V0BW - MMSZ75VBW 3RZHU'LVVLSDWLRQ500 P: 9ROWDJH5DQJHWR9 SURFACE MOUNT ZENER DIODE 500mW SOD-123 SURFACE MOUNT Flat Lead Su.

MMSZ15VBW Features

* :
* Wide Zener Voltage Range Selection, 2.0V to 75V
* VZ Tolerance Selection of ±2% (B Series)
* Flat Lead SOD-123 Plastic Package
* Surface Device Type Mounting
* RoHS Compliant
* Green EMC
* Matte Tin(Sn) Lead Finish
* Band Indicates Cathode SOD-123 Flat Lead Cath

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMSZ15VBW, MMSZ2V0BW. Please refer to the document for exact specifications by model.

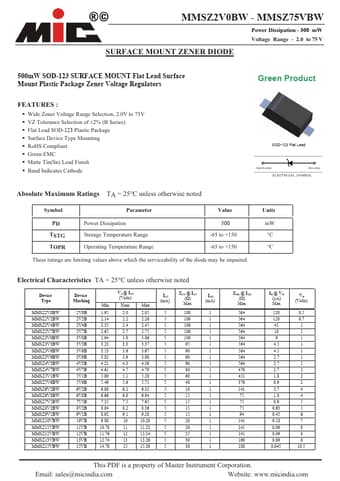

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMSZ15VBW, MMSZ2V0BW
Manufacturer
MIC
File Size
280.10 KB
Datasheet
MMSZ2V0BW-MIC.pdf
Description
SURFACE MOUNT ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: MMSZ15VBW, MMSZ2V0BW.
Please refer to the document for exact specifications by model.
