P4SMAFJ100A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the P4SMAFJ100A datasheet PDF (P4SMAFJ8.5A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount transient voltage suppressor.

Description

Ratings at 25 °C ambient temperature unless otherwise specified.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMAFJ8.5A-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMAFJ100A
Manufacturer MIC
File Size 307.62 KB
Description SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet P4SMAFJ100A Datasheet

📁 Similar Datasheet

  • P4SMAFJ100A - Surface Mount Transient Voltage Suppressors (SEMTECH)
  • P4SMAFJ100A - Surface mount transient voltage suppressor (Prisemi)
  • P4SMAFJ100A - Surface mount transient voltage suppressor (BLUE ROCKET ELECTRONICS)
  • P4SMAFJ100A - Surface Mount Transient Voltage Supressor Power 400W (PanJit International)
  • P4SMAFJ100A - Surface mount transient voltage suppressor power 400 watts (Jingdao Microelectronics)
  • P4SMAFJ100 - Surface mount transient voltage suppressor power 400 watts (Jingdao Microelectronics)
  • P4SMAFJ100C - Surface mount transient voltage suppressor power 400 watts (Jingdao Microelectronics)
  • P4SMAFJ100CA - Surface mount transient voltage suppressor (Prisemi)
  • P4SMAFJ100CA - Surface Mount Transient Voltage Suppressors (SEMTECH)
  • P4SMAFJ100CA - Surface mount transient voltage suppressor power 400 watts (Jingdao Microelectronics)
Other Datasheets by MIC
  • P4SMAFJ10A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ110A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ11A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ120A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ12A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ130A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ13A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • P4SMAFJ14A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

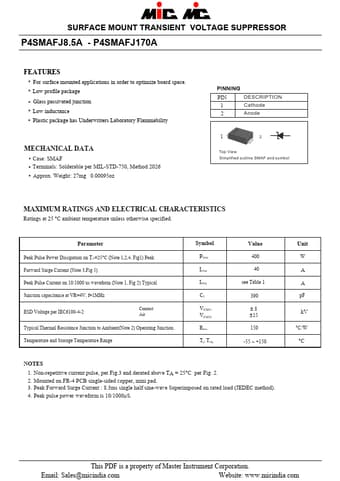

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR P4SMAFJ8.5A - P4SMAFJ170A FEATURES ▪ For surface mounted applications in order to optimize board space. ▪ Low profile package ▪ Glass passivated junction ▪ Low inductance ▪ Plastic package has Underwriters Laboratory Flammability MECHANICAL DATA ▪ Case: SMAF ▪ Terminals: Solderable per MIL-STD-750, Method 2026 ▪ Approx. Weight: 27mg 0.00095oz PINNING PIN DESCRIPTION 1 Cathode 2 Anode 12 Top View Simplified outline SMAF and symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 °C ambient temperature unless otherwise specified.
