R2500 HIGH VOLTAGE SILICON RECTIFIER

MIC

R2500 Description

R1200 THRU HIGH VOLTAGE SILICON RECTIFIER R5000 VOLTAGE RANGE 1200 to 5000 Volts CURRENT 0.2 - 0.5 Amperes .

R2500 Features

* Low leakage High surge capability High current capability High temperature soldering guaranteed: 260 /10 seconds. 0.375" (9.5mm) lead length at 5lbs. (2.3kg) tension. MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V - 0 rate flame retardant Polarity: Color band denotes cathode end.

📥 Download Datasheet

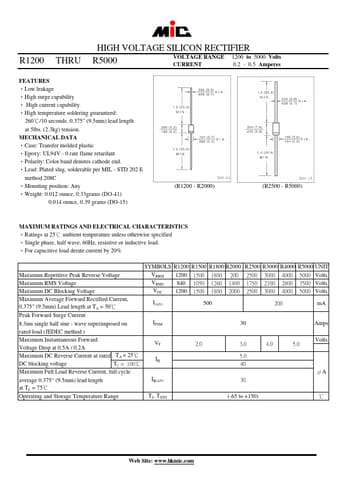

R2500 Datasheet Preview — Preview of R2500 PDF

Datasheet Details

Part number: R2500
Manufacturer: MIC
File Size: 174.01 KB
Datasheet: R2500-MIC.pdf
Description: HIGH VOLTAGE SILICON RECTIFIER
