RB152, RB151 Datasheet - MIC

RB152 SINGLE PHASE BRIDGE RECTIFIER

RB152 Features

* ▪ Low cost construction ▪ High forward surge current capability ▪ Ideal for printed circuit board ▪ High isolation voltage from case to leads ▪ High temperature soldering guaranteed: 260 oC/10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA ▪ Case: Molded plastic body ▪ Terminal: Lead solderable

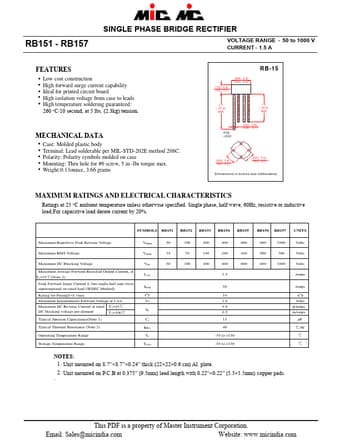

RB151-MIC.pdf

RB152 Datasheet Preview — This datasheet PDF includes multiple part numbers: RB152, RB151. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RB152, RB151

Manufacturer:

MIC

File Size:

284.20 KB

Description:

Single phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: RB152, RB151.
Please refer to the document for exact specifications by model.
