RS1006, RS1001 SINGLE-PHASE BRIDGE RECTIFIER

MIC

Description

MASTER INSTRUMENT CORPORATION SINGLE-PHASE BRIDGE RECTIFIER RS1001 THRU RS1007 VOLTAGE RANGE 50 to 1000 Volts CURRENT 10.0 Amperes .

📥 Download Datasheet

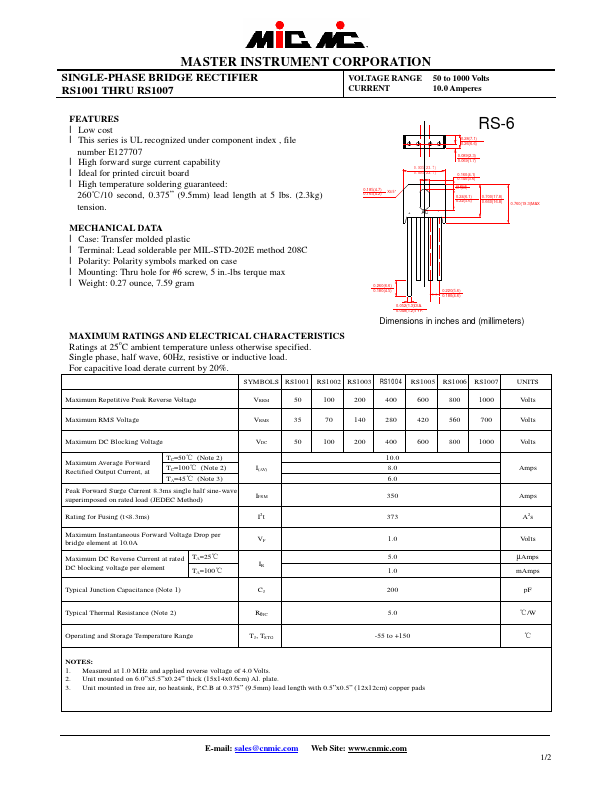

RS1006 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS1006, RS1001. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS1006, RS1001
Manufacturer: MIC
File Size: 109.79 KB
Datasheet: RS1001-MIC.pdf
Description: SINGLE-PHASE BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: RS1006, RS1001.
Please refer to the document for exact specifications by model.

Features

* l Low cost l This series is UL recognized under component index , file number E127707 l High forward surge current capability l Ideal for printed circuit board l High temperature soldering guaranteed: 260℃/10 second, 0.375” (9.5mm) lead length at 5 lbs. (2.3kg) tension. 0.185(4.7) 0.165(4.2) X45°
