S5818

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

S5818 Features

* l Plastic package has Unerwrites Laboratory Flammability Classification 94V-0 l For surface mount applications l Metal to silicon rectifier. Majority carrier conduction l Low power loss, high efficiency l High current capability, Low forward Voltage drop l High surge capability l For use in low volt

S5818 Datasheet (93.14 KB)

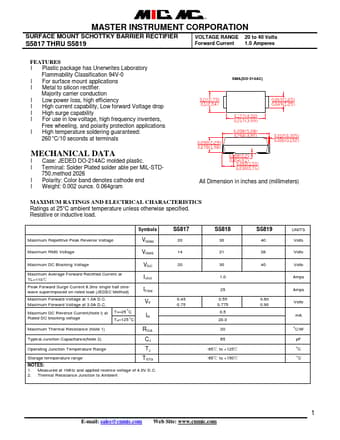

Preview of S5818 PDF

Datasheet Details

Part number:

S5818

Manufacturer:

MIC

File Size:

93.14 KB

Description:

Surface mount schottky barrier rectifier.
MASTER INSTRUMENT CORPORATION SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER S5817 THRU S5819 VOLTAGE RANGE 20 to 40 Volts Forward Current 1.0 Amperes FE.
